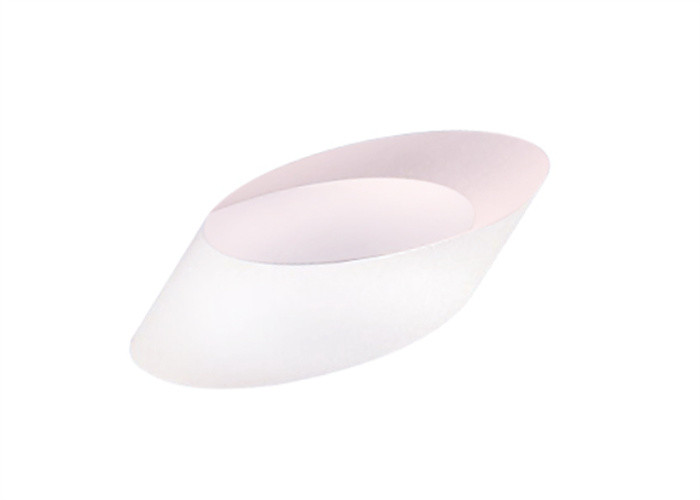

1064nm Optical Glass Windows None Coating Brewster Window In Laser

Basic Properties
Place of Origin: Wuhan, China
Brand Name: STAR OPTIC
Certification: RoHS, ISO9001
Model Number: BRW
Trading Properties
Minimum Order Quantity: 1pc
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/Month
Tags

Sapphire Optical Window

Laser Safety Window

Calcium Fluoride Window
Product Summary
Brewster Window, Zero Reflection Window, High Damage Threshold Window Overview: Brewster Windows are uncoated substrates that can be used in series as polarizers, or to clean up a partially polarized beam. When positioned at Brewster's Angle, the P-polarized component of the light enters and exits ...

Product Details

Highlight:

1064nm Optical Glass Windows

,

Brewster Window In Laser 1064nm

,

None Coating Brewster Window In Laser
Product Name: Brewster Window
Feature: Zero Loss For P-polarization, Partially Reflected For S-polarization
AOI: Brewster's Angle
Usage: Used In Laser Cavities To Produce A Beam With A High Degree Of Polarization Purity
Material: UVFS
Damage Threshold: >20J/cm2, 20ns, 20Hz, 1064nm
Product Description

Brewster Window, Zero Reflection Window, High Damage Threshold Window

Overview:

Brewster Windows are uncoated substrates that can be used in series as polarizers, or to clean up a partially polarized beam. When positioned at Brewster's Angle, the P-polarized component of the light enters and exits the window without reflection losses, while the S-polarized component is partially reflected.



Brewster Windows are primarily used in laser cavities to produce a beam with a high degree of polarization purity. When unpolarized light is incident on an uncoated substrate at Brewster's Angle, the reflected portion is completely S polarized and the transmitted portion is partially P polarized.







General Specifications Of Brewster Window:

Material BK7 Grade A, UV Grade Fused Silica
Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Surface Quality 20/10
Clear Aperture >90%
Wavefront Distortion <λ/10@633nm
Parallelism <10 arc seconds
Chamfer Protected<0.5mmx45°
Coating None
Damage Threshold >20J/cm2, 20ns, 20Hz, 1064nm







Standard Products Of Brewster Window:

PN. Material

Diameter

(mm)

Thickness

(mm)
BRW0802 BK7 8.0 2.0
BRW1002 BK7 10.0 2.0
BRW1302 BK7 13.0 2.0
BRW1602 BK7 16.0 2.0
BRW2002 BK7 20.0 2.0
BRW2502 BK7 25.0 2.0
BRW0802-FS UVFS 8.0 2.0
BRW1002-FS UVFS 10.0 2.0
BRW1302-FS UVFS 13.0 2.0
BRW1602-FS UVFS 16.0 2.0
BRW2002-FS UVFS 20.0 2.0
BRW2502-FS UVFS 25.0 2.0
