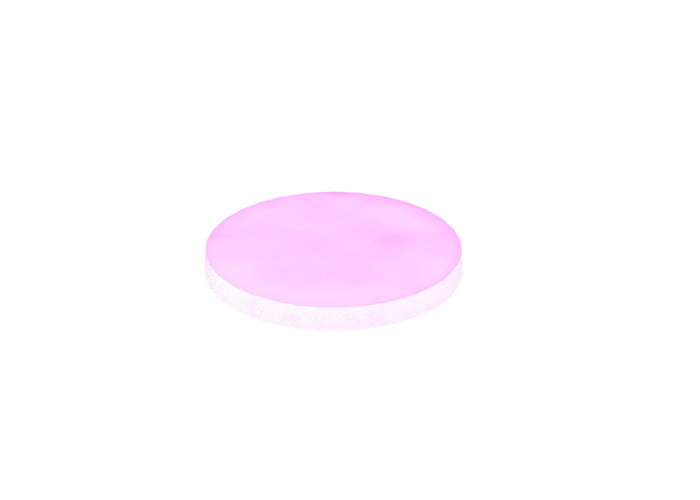

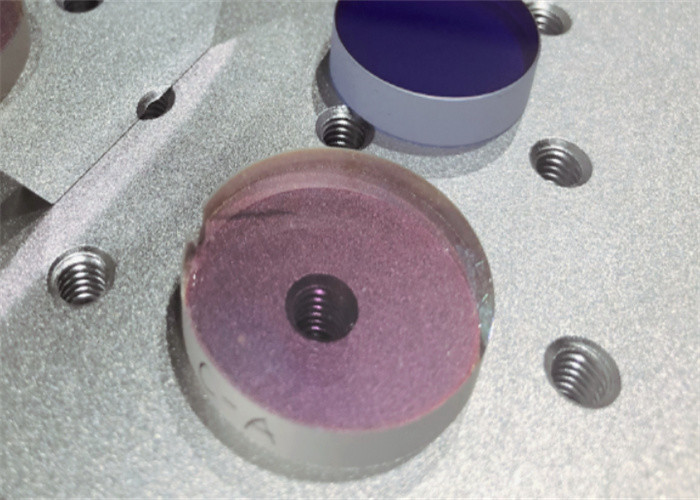

BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths

Basic Properties
Place of Origin: Wuhan, China
Brand Name: STAR OPTIC
Certification: RoHS, ISO9001
Model Number: LMIR
Trading Properties
Minimum Order Quantity: 5pcs
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/Month
Tags

Beam Splitter Mirror

Concave Convex Mirror

Output Coupler Mirror
Product Summary
Dielectric Laser Line Mirror, Nd:YAG Wavelengths From Fundamental To 4th Harmonic Overview: Star Optic fabricates laser line mirrors with dielectric high reflectance coatings that offer high damage thresholds, making them well suited for use with a range of high-powered CW or pulsed laser sources. ...

Product Details

Highlight:

BK7 Optical Mirrors

,

Laser Line Mirror BK7

,

Laser Line Mirror 4th Harmonic Wavelengths
Product Name: Dielectric Laser Line Mirror
Dimension: Standard 12.7mm, 20mm, 25.4mm And 50.8mm
Working Wavelength: Laser Line Wavelengths 266nm, 355nm, 532nm And 1064nm
Coating: Dielectric HR Coating
Reflection: R>99.5%
AOI: 0degrees And 45degrees
Product Description

Dielectric Laser Line Mirror, Nd:YAG Wavelengths From Fundamental To 4th Harmonic



Overview:

Star Optic fabricates laser line mirrors with dielectric high reflectance coatings that offer high damage thresholds, making them well suited for use with a range of high-powered CW or pulsed laser sources.





General Specifications of Dielectric Laser Line Mirror:

Material BK7 Grade A optical glass, UV grade fused silica
Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Clear Aperture >90%
Surface Quality 60/40 sctrach and dig
Flatness <λ/10@633nm per 25mm
Chamfer Protected <0.5mmx45deg
Coating

Dielectric HR coating on one surface, R>99.5% for random polarization, rear surface ground or inspection polished
Damage Threshold >5J/cm2, 20ns, 20Hz, @1064nm







Standard Products of Dielectric Laser Line Mirror:

Part Number Material Diameter
(mm)		 Thickness
(mm)		 Wavelength
(nm)		 AOI
(°)
LLM1203-262-266-0 BK7 12.7 3.0 262-266 0
LLM1203-262-266-45 BK7 12.7 3.0 262-266 45
LLM1203-349-355-0 BK7 12.7 3.0 349-355 0
LLM1203-349-355-45 BK7 12.7 3.0 349-355 45
LLM1203-397-0 BK7 12.7 3.0 397 0
LLM1203-397-45 BK7 12.7 3.0 397 45
LLM1203-488-0 BK7 12.7 3.0 488 0
LLM1203-488-45 BK7 12.7 3.0 488 45
LLM1203-524-532-0 BK7 12.7 3.0 524-532 0
LLM1203-524-532-45 BK7 12.7 3.0 524-532 45
LLM1203-633-0 BK7 12.7 3.0 633 0
LLM1203-633-45 BK7 12.7 3.0 633 45
LLM1203-780-0 BK7 12.7 3.0 780 0
LLM1203-780-45 BK7 12.7 3.0 780 45
LLM1203-850-0 BK7 12.7 3.0 850 0
LLM1203-850-45 BK7 12.7 3.0 850 45
LLM1203-1047-1064-0 BK7 12.7 3.0 1047-1064 0
LLM1203-1047-1064-45 BK7 12.7 3.0 1047-1064 45
LLM1203-1310-0 BK7 12.7 3.0 1310 0
LLM1203-1310-45 BK7 12.7 3.0 1310 45
LLM1203-1550-0 BK7 12.7 3.0 1550 0
LLM1203-1550-45 BK7 12.7 3.0 1550 45
LLM2005-262-266-0 BK7 20.0 5.0 262-266 0
LLM2005-262-266-45 BK7 20.0 5.0 262-266 45
LLM2005-349-355-0 BK7 20.0 5.0 349-355 0
LLM2005-349-355-45 BK7 20.0 5.0 349-355 45
LLM2005-397-0 BK7 20.0 5.0 397 0
LLM2005-397-45 BK7 20.0 5.0 397 45
LLM2005-488-0 BK7 20.0 5.0 488 0
LLM2005-488-45 BK7 20.0 5.0 488 45
LLM2005-524-532-0 BK7 20.0 5.0 524-532 0
LLM2005-524-532-45 BK7 20.0 5.0 524-532 45
LLM2005-633-0 BK7 20.0 5.0 633 0
LLM2005-633-45 BK7 20.0 5.0 633 45
LLM2005-780-0 BK7 20.0 5.0 780 0
LLM2005-780-45 BK7 20.0 5.0 780 45
LLM2005-850-0 BK7 20.0 5.0 850 0
LLM2005-850-45 BK7 20.0 5.0 850 45
LLM2005-1047-1064-0 BK7 20.0 5.0 1047-1064 0
LLM2005-1047-1064-45 BK7 20.0 5.0 1047-1064 45
LLM2005-1310-0 BK7 20.0 5.0 1310 0
LLM2005-1310-45 BK7 20.0 5.0 1310 45
LLM2005-1550-0 BK7 20.0 5.0 1550 0
LLM2005-1550-45 BK7 20.0 5.0 1550 45
LLM2506-262-266-0 BK7 25.4 6.35 262-266 0
LLM2506-262-266-45 BK7 25.4 6.35 262-266 45
LLM2506-349-355-0 BK7 25.4 6.35 349-355 0
LLM2506-349-355-45 BK7 25.4 6.35 349-355 45
LLM2506-397-0 BK7 25.4 6.35 397 0
LLM2506-397-45 BK7 25.4 6.35 397 45
LLM2506-488-0 BK7 25.4 6.35 488 0
LLM2506-488-45 BK7 25.4 6.35 488 45
LLM2506-524-532-0 BK7 25.4 6.35 524-532 0
LLM2506-524-532-45 BK7 25.4 6.35 524-532 45
LLM2506-633-0 BK7 25.4 6.35 633 0
LLM2506-633-45 BK7 25.4 6.35 633 45
LLM2506-780-0 BK7 25.4 6.35 780 0
LLM2506-780-45 BK7 25.4 6.35 780 45
LLM2506-850-0 BK7 25.4 6.35 850 0
LLM2506-850-45 BK7 25.4 6.35 850 45
LLM2506-1047-1064-0 BK7 25.4 6.35 1047-1064 0
LLM2506-1047-1064-45 BK7 25.4 6.35 1047-1064 45
LLM2506-1310-0 BK7 25.4 6.35 1310 0
LLM2506-1310-45 BK7 25.4 6.35 1310 45
LLM2506-1550-0 BK7 25.4 6.35 1550 0
LLM2506-1550-45 BK7 25.4 6.35 1550 45
LLM5006-262-266-0 BK7 50.8 6.35 262-266 0
LLM5006-262-266-45 BK7 50.8 6.35 262-266 45
LLM5006-349-355-0 BK7 50.8 6.35 349-355 0
LLM5006-349-355-45 BK7 50.8 6.35 349-355 45
LLM5006-397-0 BK7 50.8 6.35 397 0
LLM5006-397-45 BK7 50.8 6.35 397 45
LLM5006-488-0 BK7 50.8 6.35 488 0
LLM5006-488-45 BK7 50.8 6.35 488 45
LLM5006-524-532-0 BK7 50.8 6.35 524-532 0
LLM5006-524-532-45 BK7 50.8 6.35 524-532 45
LLM5006-633-0 BK7 50.8 6.35 633 0
LLM5006-633-45 BK7 50.8 6.35 633 45
LLM5006-780-0 BK7 50.8 6.35 780 0
LLM5006-780-45 BK7 50.8 6.35 780 45
LLM5006-850-0 BK7 50.8 6.35 850 0
LLM5006-850-45 BK7 50.8 6.35 850 45
LLM5006-1047-1064-0 BK7 50.8 6.35 1047-1064 0
LLM5006-1047-1064-45 BK7 50.8 6.35 1047-1064 45
LLM5006-1310-0 BK7 50.8 6.35 1310 0
LLM5006-1310-45 BK7 50.8 6.35 1310 45
LLM5006-1550-0 BK7 50.8 6.35 1550 0
LLM5006-1550-45 BK7 50.8 6.35 1550 45







Coating Graphs of Dielectric Laser Line Mirror:

BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 0 BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 1
BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 2 BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 3
BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 4 BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 5
BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 6 BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 7
BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 8 BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 9
BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 10 BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 11
BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 12 BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 13
BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 14 BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 15
BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 16 BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 17
BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 18 BK7 Optical Mirrors Dielectric Laser Line Mirror 4th Harmonic Wavelengths 19
