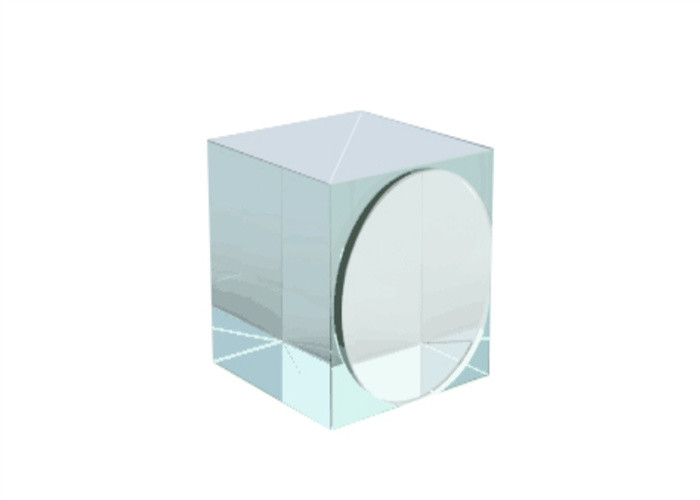

Crystal Quartz Optical Isolator 12.7mm Isolate Linear Polarized Light

  • Crystal Quartz Optical Isolator 12.7mm Isolate Linear Polarized Light
Place of Origin Wuhan, China
Brand Name STAR OPTIC
Certification RoHS, ISO9001
Model Number ISO
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Safe and dust-free packing
Delivery Time Negotiable
Payment Terms T/T, Western Union, Paypal
Supply Ability 50000pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Optical Isolator Constructure PBS+Quarter Waveplate
Material Crystal Quartz & BK7 Feature Passive Isolation Of Linearly Polarized Light
Isolation 20dB Coating Hypo Polarizing Sensitive Coating, All Entrance And Exit Faces Are AR Coated
High Light

High Power Optical Isolator 12.7mm

,

12.7mm Linear Circular Polarization

,

Crystal Quartz High Power Optical Isolator
Leave a Message
Product Description

Optical Isolator, Passive Isolation Of Linearly Polarized Light, PBS+Quarter Waveplate

Overview:

Optical isolator is a combination of a Polarizing Beamsplitter Cube (PBS) and a Quartz Quarter Waveplate. Incident light is linearly polarized by PBS and converted to circular polarization by the quarter waveplate when light first travels through it. Any portion of the emerging beam reflected back into the isolator and goes through a second time of the quarter waveplate will be converted into a linearly polarized beam which is perpendicular to the input beam. This beam is then blocked by PBS and it will not return to the original input path of the system.


General Specifications of Optical Isolator​:

Material Crystal Quartz & BK7
Dimension Tolerance ±0.2mm
Surface Quality 60/40
Clear Aperture >90%
Transmitted Wavefront Distortion <λ/4@632.8nm
Beam Deviation <3 arc minutes
Isolation >20dB
Transmission Tp>95%, Ts<1%
Reflection Rs>99%, Rp<5%
AR Coating R<0.25%@ central wavelength on all entrances
Damage Threshold >500mJ/cm2, 20ns, 20Hz @1064nm

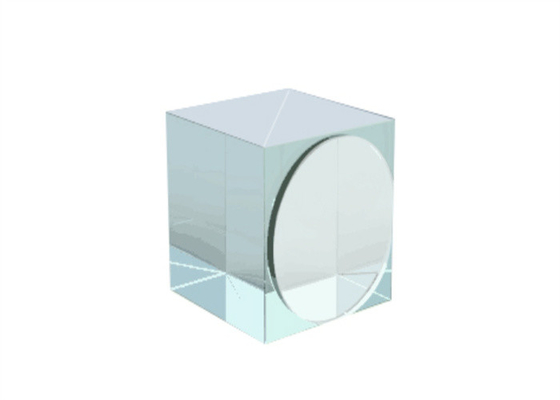

Crystal Quartz Optical Isolator 12.7mm Isolate Linear Polarized Light 0 Crystal Quartz Optical Isolator 12.7mm Isolate Linear Polarized Light 1



Standard Products of Optical Isolator​:

Part Number

Dimension A

(mm)

Thickness A
(mm)

Isolation
(dB)

Wavelength

(nm)
ISO1010-532 10x10 10 >20 532
ISO1212-532 12.7x12.7 12.7 >20 532
ISO1010-633 10x10 10 >20 633
ISO1212-633 12.7x12.7 12.7 >20 633
ISO1010-780 10x10 10 >20 780
ISO1212-780 12.7x12.7 12.7 >20 780
ISO1010-1064 10x10 10 >20 1064
ISO1212-1064 12.7x12.7 12.7 >20 1064
ISO1010-1550 10x10 10 >20 1550
ISO1212-1550 12.7x12.7 12.7 >20 1550




Coating Graphs of Optical Isolator​:



532nm Optical Isolator

Crystal Quartz Optical Isolator 12.7mm Isolate Linear Polarized Light 2




633nm Optical Isolator

Crystal Quartz Optical Isolator 12.7mm Isolate Linear Polarized Light 3




780nm Optical Isolator

Crystal Quartz Optical Isolator 12.7mm Isolate Linear Polarized Light 4




1064nm Optical Isolator

Crystal Quartz Optical Isolator 12.7mm Isolate Linear Polarized Light 5




1550nm Optical Isolator

Crystal Quartz Optical Isolator 12.7mm Isolate Linear Polarized Light 6
