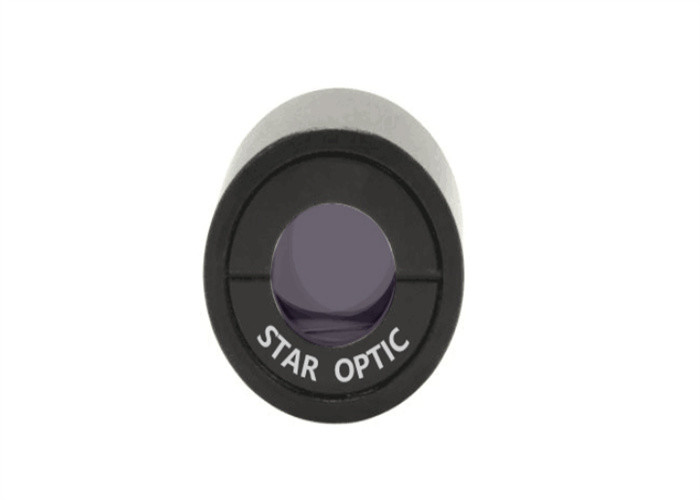

10 Scratch Dig Laser Polarizer 600nm Rochon Prism Polarizers
Basic Properties
Place of Origin:
Wuhan, China
Brand Name:
STAR OPTIC
Certification:
RoHS, ISO9001
Model Number:
RHP
Trading Properties
Minimum Order Quantity:
1pc
Price:
Negotiable
Payment Terms:
T/T, Western Union, Paypal
Supply Ability:
50000pcs/Month
Product Summary
Rochon Prism Polarizers, Only Ordinary Ray Undeviated Overview: A Rochon Prism is a type of polarizer. It is made from two prisms of a birefringent material such as crystal quartz and YVO4 which are cemented together. Rochon Prisms split an arbitrarily polarized input beam into two orthogonally ...
Product Details
Highlight:
10 Scratch Dig Laser Polarizer
,600nm Rochon Prism Polarizers
,Laser Polarizer 600nm
Product Name:
Rochon Prism Polarizers,
Feature:
Only Ordinary Ray Undeviated
Applications:
Small Beam Separations
Angular Field:
1°, 6°
Coating:
Single Layer MgF2
Mount:
Black Anodized Aluminium
Product Description
Rochon Prism Polarizers, Only Ordinary Ray Undeviated
|
Overview:
A Rochon Prism is a type of polarizer. It is made from two prisms of a birefringent material such as crystal quartz and YVO4 which are cemented together.
Rochon Prisms split an arbitrarily polarized input beam into two orthogonally polarized output beams. The ordinary ray remains on the same optical axis as the input beam, while the extraordinary ray deviates by an angle, which depends on the wavelength of the light and the material of the prism (see the Beam Deviation graphs in the table to the right). The output beams have a high polarization extinction ratio of >10 000:1 for the quartz prism and >100 000:1 for the YVO4 prism.
Rochon Prims are used for applications where small beam separations are required.
General Specifications of Rochon Prism Polarizer:
Standard Products of Rochon Prism Polarizer:
|
