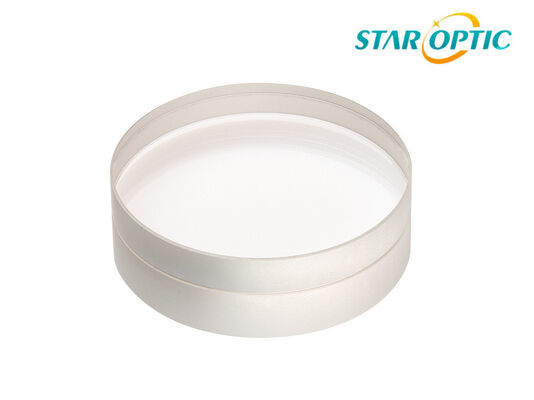

Anti reflective Coating Optical Cylinder Lens 25.4mm Diameter Surface Flatness λ4 Precision for Industrial Applications

Product Description:

The Optical Cylinder Lens is a precision-engineered optical component designed to manipulate light with exceptional accuracy and efficiency. Featuring a cylindrical shape, this lens is tailored to focus or expand light in one dimension while maintaining the integrity of the beam in the perpendicular direction. This unique characteristic makes the Optical Cylinder Lens an indispensable tool in a wide range of applications, including laser systems, optical instrumentation, and imaging technologies.

Available in a variety of dimensions ranging from 10x20 mm to 20x20 mm, as well as custom sizes to meet specific requirements, the Optical Cylinder Lens offers flexibility and adaptability for diverse optical setups. Its cylindrical shape allows it to perform specialized functions that spherical lenses cannot, such as line focusing and astigmatism correction. This makes it particularly valuable in systems where controlling the beam shape and size is critical.

One of the standout features of this lens is its broad working wavelength range, spanning from ultraviolet (UV) through visible (VIS) to infrared (IR) spectra. This wide operational bandwidth ensures compatibility with numerous light sources and applications, from UV curing and medical diagnostics to IR sensing and telecommunications. The lens is meticulously designed to operate optimally at a design wavelength of 632.8 nm, which corresponds to the red helium-neon (He-Ne) laser line, ensuring peak performance in laser applications where precision and clarity are paramount.

Constructed from high-quality optical glass substrate, the Optical Cylinder Lens guarantees excellent optical clarity, durability, and thermal stability. The choice of optical glass as the substrate material ensures minimal absorption and scattering of light, resulting in high transmission efficiency and reduced aberrations. This makes the lens suitable for use in environments requiring stringent optical performance and long-term reliability.

In addition to its core properties, the Optical Cylinder Lens integrates seamlessly with other optical components such as achromatic optical lenses and auto iris lenses to build complex optical systems. Achromatic optical lenses are designed to minimize chromatic aberration by combining two or more lens elements made from different types of glass. When used in conjunction with the cylindrical glass lens, these achromatic lenses enhance overall image quality by correcting color distortions and improving focus precision across a broad spectrum of wavelengths.

The Optical Cylinder Lens also complements auto iris lens systems, which automatically adjust the aperture size to control the amount of light entering the optical device. This synergy allows for dynamic light modulation and improved image contrast, especially in applications involving variable lighting conditions. By pairing the cylindrical glass lens with auto iris lenses, optical engineers can achieve superior control over beam shaping and intensity, facilitating advanced imaging and sensing solutions.

Whether employed in laser scanning, barcode reading, optical data storage, or precision measurement instruments, the Optical Cylinder Lens stands out for its reliability and performance. Its cylindrical geometry, combined with customizable dimensions and a wide spectral working range, makes it a versatile choice for engineers and researchers seeking tailored optical solutions. The lens’s compatibility with achromatic optical lenses and auto iris lenses further broadens its application scope, enabling the construction of sophisticated optical assemblies that meet the evolving demands of modern technology.

In summary, the Optical Cylinder Lens is a vital optical component that offers exceptional control over light manipulation through its cylindrical design, optical glass substrate, and broad wavelength compatibility. Its ability to integrate with achromatic optical lenses and auto iris lenses enhances its functionality, making it an essential element in advanced optical systems. Whether for industrial, scientific, or medical applications, this lens provides the precision and adaptability required to meet high-performance optical challenges.

Features:

• Product Name: Optical Cylinder Lens
• Surface Flatness: λ/4 for high precision
• Coating: Anti-reflective coating to minimize glare and enhance transmission
• Shape: Cylindrical design ideal for specific optical applications
• Design Wavelength: Optimized for 632.8nm wavelength
• Raw Material: Made from high-quality optical glass
• Suitable for use as an Auto Iris Lens in various optical systems
• Perfect for Industrial Lens applications requiring durability and precision
• Compatible with Achromatic Optical Lenses to reduce chromatic aberrations

Applications:

The STAR OPTIC Optical Cylinder Lens, model CYX, originating from Wuhan, China, is a high-precision optical component designed for a variety of advanced applications. Certified with RoHS and ISO9001 standards, this lens guarantees superior quality and environmental compliance, making it a reliable choice for industries requiring exact optical performance. With a clear aperture greater than 90% and an anti-reflective coating optimized for a design wavelength of 632.8nm, this cylinder lens ensures excellent light transmission and minimal reflection, crucial for precision optical systems.

This optical cylinder lens is particularly well-suited for use in interferometer lens setups, where its one-dimensional beam shaping capability is essential for creating high-quality interference patterns. In interferometry, the lens helps to manipulate laser beams into thin, line-shaped profiles, which are critical for accurate measurement and testing of surface flatness, wavefront distortion, and other optical properties. Its robust optical glass construction ensures durability and high performance even in demanding laboratory and industrial environments.

In addition to interferometer lens applications, the STAR OPTIC CYX cylinder lens is ideal for integration into auto iris lens systems. The precise beam shaping characteristic of this optical component can optimize the light modulation in camera and imaging devices, enhancing image clarity and contrast by controlling the light aperture dynamically. This makes it a valuable part in modern optical instruments, surveillance systems, and scientific imaging equipment.

The product is available with a minimum order quantity of 5 pieces, and the price is negotiable to accommodate various customer needs. STAR OPTIC provides safe and dust-free packaging to ensure the lenses arrive in pristine condition, ready for immediate use. With a supply ability of up to 50,000 pieces per month, the company can support large-scale industrial demands and custom orders alike. Delivery time and payment terms, including T/T, Western Union, and Paypal, are flexible to provide convenient purchasing options for clients worldwide.

Overall, the STAR OPTIC CYX Optical Cylinder Lens is an essential optical component for those seeking reliable and precise one-dimensional beam shaping for interferometer lens configurations, auto iris lens systems, and other advanced optical applications. Its combination of quality, certification, and supply capability makes it a preferred choice in the global optics market.

Customization:

Introducing the STAR OPTIC CYX Optical Cylinder Lens, expertly crafted in Wuhan, China. This high-quality lens is certified with RoHS and ISO9001, ensuring premium standards and reliability for your optical needs.

Our Optical Cylinder Lens features one dimensional beam shaping with a clear aperture greater than 90%, making it ideal for applications such as interferometer lens systems, infrared lens setups, and dome camera lens assemblies. The lens is made from superior optical glass substrate and enhanced with advanced anti-reflective (AR) coatings suitable for UV, VIS to IR spectral ranges, ensuring excellent optical performance and minimal reflection.

We offer flexible product customization services with a minimum order quantity of 5 pieces. Pricing and delivery time are negotiable to meet your specific project requirements. Each lens is carefully packaged using safe and dust-free packing methods to guarantee product integrity during shipment.

Our supply ability reaches up to 50,000 pieces per month, supported by reliable payment terms including T/T, Western Union, and Paypal for your convenience.

Choose STAR OPTIC CYX Optical Cylinder Lenses for tailored solutions in interferometer lens, infrared lens, and dome camera lens applications, backed by quality assurance and exceptional service.
