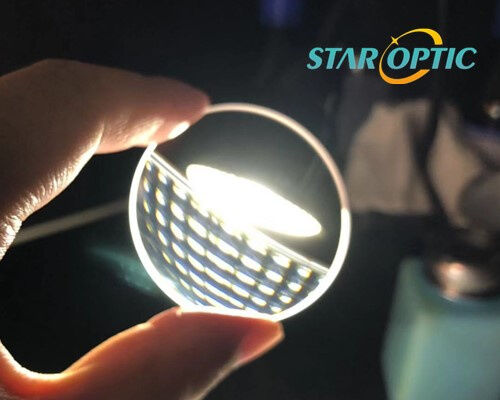

Surface Flatness λ4 Cylindrical Achromatic Optical Lenses Designed for Accurate Color Correction in Imaging Applications

Product Description:

The Optical Cylinder Lens is a precision-engineered optical component designed to meet the demanding requirements of various industrial and imaging applications. This lens is particularly valued for its unique cylindrical shape, which enables it to focus or expand light in one dimension, making it an essential element in systems requiring line focusing or astigmatic correction. With dimensions ranging from 10x20 mm up to 20x20 mm, as well as custom sizes available, this lens offers flexibility to accommodate diverse design needs.

One of the standout features of this Optical Cylinder Lens is its superior optical thin film coatings. It is equipped with high-performance Anti-Reflection (AR) coatings that span a broad spectrum from ultraviolet (UV) through visible (VIS) to infrared (IR) wavelengths. These AR coatings significantly enhance light transmission and reduce surface reflections, thereby improving image clarity and overall system efficiency. This makes the lens an excellent choice for applications requiring high optical performance across multiple wavelength ranges.

The surface quality of the lens is meticulously controlled to ensure optimal optical performance. The surface flatness is maintained at λ/4, a standard that guarantees minimal wavefront distortion and high precision in light manipulation. Additionally, the lens undergoes a stringent polishing process with a specification of N<3(0.5) at 632.8 nm, ensuring that the surface roughness is kept to a minimum. This high level of polish quality reduces scattering and aberrations, which is critical for achieving crisp, high-contrast images.

Designed with a wavelength of 632.8 nm in mind, the Optical Cylinder Lens is perfectly suited for laser and other coherent light sources operating at this wavelength. This design consideration makes it an ideal component in laser scanning, barcode reading, and various precision measurement systems where maintaining beam quality and focus is paramount.

In industrial settings, the Optical Cylinder Lens serves as a versatile industrial lens, providing reliable performance in machinery vision systems, automated inspection devices, and optical instrumentation. Its ability to manipulate light in a controlled cylindrical manner makes it indispensable for applications that require line illumination or imaging, such as laser line generators or structured light systems.

Furthermore, this lens is widely used in dome camera lenses, where its cylindrical geometry helps in correcting distortions and enhancing image quality in wide-angle or panoramic surveillance cameras. Its robust construction and advanced coatings ensure durability and consistent performance even in challenging environmental conditions, making it a preferred choice for security and monitoring applications.

Customization options for the Optical Cylinder Lens allow it to be tailored to specific project requirements. Whether you need particular dimensions or specialized coating specifications, the lens can be adapted to fit unique optical systems. This flexibility, combined with its high optical standards, makes it a valuable component in both research and commercial optical assemblies.

In summary, the Optical Cylinder Lens is a high-quality cylindrical glass lens engineered for precision and versatility. Its customizable dimensions, superior AR coatings for UV, VIS, and IR ranges, excellent surface flatness of λ/4, and fine polishing quality ensure exceptional optical performance. Ideal for use as an industrial lens and in dome camera lens configurations, it delivers reliable, high-performance results across a variety of applications. Whether for enhancing laser systems, improving industrial imaging, or optimizing surveillance camera optics, this lens stands out as a critical element in advanced optical designs.

Features:

• Product Name: Optical Cylinder Lens
• Coating Wavelength Range: 400-700nm
• Shape: Cylindrical
• Size: 25.4mm
• Feature: One Dimensional Beam Shaping
• Substrate: Optical Glass
• Suitable as an Infrared lens for various applications
• Works effectively as a Front Glass Lens
• High quality Infrared Optical Lens for precision optical systems

Applications:

The STAR OPTIC Optical Cylinder Lens, model CYX, is a highly versatile and precision-engineered optical component originating from Wuhan, China. Designed with premium optical glass as the raw material, this lens is ideal for a wide range of application occasions and scenarios across various industries. Certified with RoHS and ISO9001, the STAR OPTIC CYX lens guarantees quality and reliability, making it a preferred choice for professionals requiring superior optical performance.

This optical cylinder lens is especially suited for applications involving infrared optical lenses, industrial lenses, and aspherical optical lenses. Its design wavelength of 632.8nm and coating wavelength range of 400-700nm enable it to operate effectively across UV, visible, and infrared spectra, thus making it adaptable for diverse optical systems. Whether it is used in laser scanning, imaging systems, or precision measurement devices, the CYX lens delivers exceptional clarity and focus.

In industrial settings, the STAR OPTIC CYX cylinder lens supports complex optical assemblies requiring robust and reliable lenses. Its optical glass substrate ensures durability and consistent performance even in demanding environments. The lens is commonly utilized in industrial lens configurations for machine vision, quality control inspection, and automated optical inspection systems, where high precision and minimal distortion are critical.

The infrared optical lens capability of the CYX model allows it to be integrated into thermal imaging devices, night vision equipment, and other infrared applications. Its excellent transmission across UV to IR wavelengths ensures that the lens performs optimally in sensing and detection applications. Additionally, the aspherical optical lens design characteristics help in reducing spherical aberrations, enhancing image quality, and improving overall system performance.

STAR OPTIC offers a minimum order quantity of 5 pieces with negotiable pricing, making it accessible for both small and large scale projects. The product is securely packaged in a safe and dust-free environment to maintain its pristine condition during shipping. With a supply ability of 50,000 pieces per month and flexible delivery and payment terms including T/T, Western Union, and Paypal, STAR OPTIC ensures timely and convenient procurement for its customers worldwide.

In summary, the STAR OPTIC CYX Optical Cylinder Lens is an excellent choice for various application occasions such as industrial manufacturing, scientific research, medical instrumentation, and advanced optical systems requiring infrared optical lenses, industrial lenses, or aspherical optical lenses. Its superior optical glass construction, broad wavelength compatibility, and certified quality make it an indispensable component in the modern optics industry.

Customization:

STAR OPTIC presents the CYX model Optical Cylinder Lens, a premium industrial lens designed and manufactured in Wuhan, China. This cylindrical lens offers exceptional performance with a clear aperture greater than 90% and is coated with advanced AR coatings suitable for UV, VIS to IR wavelength ranges, ensuring optimal clarity and minimal reflection.

Certified with RoHS and ISO9001, our Optical Cylinder Lens guarantees high quality and environmental compliance. Ideal for applications such as dome camera lenses, this product enhances image quality and precision in various industrial and surveillance settings.

We offer product customization services tailored to your specific needs, with a minimum order quantity of 5pcs. Pricing and delivery time are negotiable to best fit your project requirements. Each lens is carefully packaged in safe and dust-free packing to ensure it arrives in perfect condition.

With a supply ability of 50,000pcs per month, STAR OPTIC ensures timely availability of our dome camera lens and other industrial lens products. Payment terms include T/T, Western Union, and Paypal for your convenience.

Choose STAR OPTIC’s CYX Optical Cylinder Lens for reliable, high-performance lens solutions in your industrial and dome camera lens applications.
