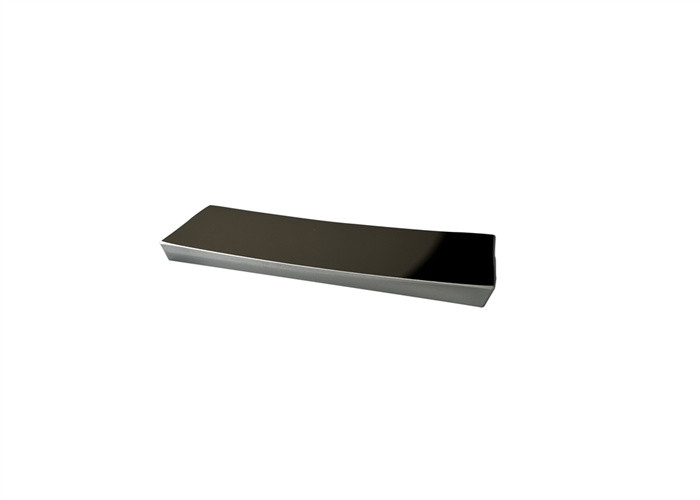

Plano concave mirror with protected silver reflective coating

Product Description:

A plano concave mirror with a protected silver reflective coating is a specific type of mirror commonly used in optical systems. Let's break down its characteristics:

1. Plano Concave Shape: The mirror has a flat (plano) side and a concave side. The concave side is curved inward like the inner surface of a sphere, while the flat side is optically flat. This shape allows the mirror to diverge incident light.
2. Protected Silver Reflective Coating: The reflective coating applied to the concave side is made of silver. Silver is a highly reflective material for visible light. However, silver is prone to tarnishing and degradation due to environmental factors such as humidity, temperature, and exposure to gases. To protect the silver coating and maintain its reflective properties, a protective layer is applied on top of the silver. This protective layer acts as a barrier against oxidation and other forms of degradation, ensuring the long-term performance of the mirror.

Key optical properties:

The combination of the plano concave shape and the protected silver coating results in specific optical properties:

1. Light Divergence: The concave shape of the mirror causes incident light to diverge. When light rays strike the concave surface, they are reflected outward, resulting in a spread or divergence of the light. This property is useful in applications where divergent beams or collimation of light is required.
2. High Reflectivity: The silver coating provides high reflectivity for visible light wavelengths. This means that a significant portion of the incident light is reflected off the mirror's surface rather than being transmitted through or absorbed. This property is crucial in applications such as imaging, laser systems, and optical instruments, where efficient reflection is necessary.
3. Broadband Reflectivity: The protected silver coating typically offers good reflectivity across a broad range of wavelengths, including the visible and near-infrared regions. This makes the mirror suitable for various applications that involve multiple wavelengths or broadband light sources.

Applications:

Plano concave mirrors with protected silver coatings are commonly used in optical systems such as telescopes, laser systems, spectroscopy instruments, and beam expanders. They provide efficient reflection, controlled divergence, and excellent performance over a wide range of wavelengths, making them valuable components in many optical setups. Here below are some examples:

1. Astronomical Telescopes: Plano concave mirrors with protected silver coatings can be used as secondary or tertiary mirrors in astronomical telescopes. They help redirect and focus light onto the primary mirror or the eyepiece, contributing to the overall optical performance of the telescope.
2. Beam Expanding Systems: Plano concave mirrors with protected silver coatings are commonly employed in beam expanding systems. These systems are used to increase the diameter or size of a laser beam while maintaining its spatial characteristics. The silver-coated mirror reflects and diverges the incoming laser beam, allowing for controlled expansion.
3. Laser Resonators: Plano concave mirrors with protected silver coatings are utilized in laser resonator cavities. They play a crucial role in reflecting and shaping the laser beam, contributing to the stability, output power, and beam quality of the laser system.
4. Optical Coherence Tomography (OCT): OCT is an imaging technique used in biomedical and ophthalmic applications. Plano concave mirrors with protected silver coatings can be incorporated into the OCT system, serving as reflective elements for directing and focusing the light beam onto the sample or the detector.
5. Spectroscopy: Plano concave mirrors with protected silver coatings are employed in spectroscopy setups. They help direct and shape the light beam, ensuring efficient reflection and optimizing the performance of the spectrometer.
6. Laser Beam Steering: In applications where precise control of the laser beam direction is required, such as laser marking, laser cutting, or laser scanning systems, plano concave mirrors with protected silver coatings can be used for beam steering and redirection.
7. Optical Instruments: Plano concave mirrors with protected silver coatings are found in various optical instruments, including microscopes, cameras, and projectors. They assist in reflecting and manipulating light to achieve desired imaging or projection characteristics.

These are just a few examples of the many applications where plano concave mirrors with protected silver coatings are utilized. Their excellent reflectivity, controlled divergence, and broadband capabilities make them versatile components in the field of optics
