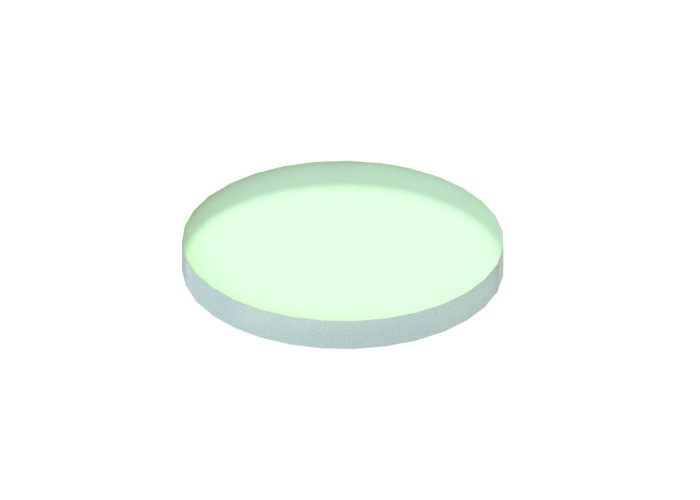

5J Optical Mirrors High Reflectivity Dual Wavelength Mirror Coatings Durable

  • 5J Optical Mirrors High Reflectivity Dual Wavelength Mirror Coatings Durable
Place of Origin Wuhan, China
Brand Name STAR OPTIC
Certification RoHS, ISO9001
Model Number DLM
Minimum Order Quantity 5pcs
Price Negotiable
Packaging Details Safe and dust-free packing
Delivery Time Negotiable
Payment Terms T/T, Western Union, Paypal
Supply Ability 50000pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Dielectric Dual Laser Line Mirror Feature High Reflectivity At Two Laser Line Wavelengths
Applications Laser Systmes Where Two Harmonics Are Used Coating Dielectric High Reflective Coating
AOI Normal And 45 Degrees Damage Threshold >5J/cm2, 20ns, 20Hz, @1064nm
High Light

Optical Mirrors 5J

,

5J Dual Wavelength Mirror

,

Optical Mirrors High Reflectivity
Leave a Message
Product Description

Dielectric Dual Laser Line Mirror, High Reflectivity At Two Laser Line Wavelengths

Overview:

Dual Laser Line Mirrors are highly efficient reflectors optimized for two speficied laser line wavelengths and certain angle of incidence (AOI). These multilayer coating stacks help to achieve the highest possible reflectivity at two given laser line wavelengths at normal or 45 degrees incidence. Their coatings are very durable, making them easier clean repeatedly and more resistant to laser damage.



Dual laser line mirrors are a perfect choice for laser systmes where two harmonics are used.







General Specifications of Dual Laser Line Mirror:

Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Surface Quality 60/40
Clear Aperture >90%
Flatness λ/10@632.8nm per 25mm before coating
Coating

High reflective coating on one surface, R>99%

back surface ground or inspection polished
Damage Threshold >5J/cm2, 20ns, 20Hz, @1064nm







Standard Products of Dual Laser Line Mirror:

Part No. Material Diameter
(mm)		 Thickness
(mm)		 Wavelength
(nm)		 AOI
(°)
DLM1203-355-532-0 N-BK7 12.7 3 351-355 & 524-532 0
DLM1203-355-532-45 N-BK7 12.7 3 351-355 & 524-532 45
DLM2506-355-532-0 N-BK7 25.4 6.35 351-355 & 524-532 0
DLM2506-355-532-45 N-BK7 25.4 6.35 351-355 & 524-532 45
DLM5006-355-532-0 N-BK7 50.8 6.35 351-355 & 524-532 0
DLM5006-355-532-45 N-BK7 50.8 6.35 351-355 & 524-532 45
DLM1203-532-1064-0 N-BK7 12.7 3 524-532 & 1047-1064 0
DLM1203-532-1064-45 N-BK7 12.7 3 524-532 & 1047-1064 45
DLM2506-532-1064-0 N-BK7 25.4 6.35 524-532 & 1047-1064 0
DLM2506-532-1064-45 N-BK7 25.4 6.35 524-532 & 1047-1064 45
DLM5006-532-1064-0 N-BK7 50.8 6.35 524-532 & 1047-1064 0
DLM5006-532-1064-45 N-BK7 50.8 6.35 524-532 & 1047-1064 45
DLM1203-633-1064-0 N-BK7 12.7 3 633-660 & 1047-1064 0
DLM1203-633-1064-45 N-BK7 12.7 3 633-660 & 1047-1064 45
DLM2506-633-1064-0 N-BK7 25.4 6.35 633-660 & 1047-1064 0
DLM2506-633-1064-45 N-BK7 25.4 6.35 633-660 & 1047-1064 45
DLM5006-633-1064-0 N-BK7 50.8 6.35 633-660 & 1047-1064 0
DLM5006-633-1064-45 N-BK7 50.8 6.35 633-660 & 1047-1064 45







Coating Graphs of Dual Laser Line Mirror:



351-355 & 524-532nm Dual Laser Line Mirror

AOI 0°

5J Optical Mirrors High Reflectivity Dual Wavelength Mirror Coatings Durable 0



351-355 & 524-532nm Dual Laser Line Mirror

AOI 45°

5J Optical Mirrors High Reflectivity Dual Wavelength Mirror Coatings Durable 1



524-532nm & 1047-1064nm Dual Laser Line Mirror

AOI 0°

5J Optical Mirrors High Reflectivity Dual Wavelength Mirror Coatings Durable 2



524-532nm & 1047-1064nm Dual Laser Line Mirror

AOI 45°

5J Optical Mirrors High Reflectivity Dual Wavelength Mirror Coatings Durable 3



633-660nm & 1047-1064nm Dual Laser Line Mirror

AOI 0°

5J Optical Mirrors High Reflectivity Dual Wavelength Mirror Coatings Durable 4



633-660nm & 1047-1064nm Dual Laser Line Mirror

AOI 45°

5J Optical Mirrors High Reflectivity Dual Wavelength Mirror Coatings Durable 5
