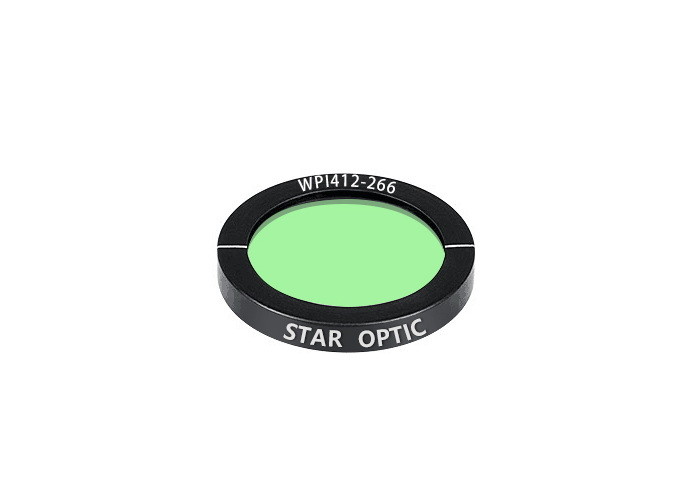

266nm Zero Order Quarter Wave Plate 20Hz Support High Power Lasers

  • 266nm Zero Order Quarter Wave Plate 20Hz Support High Power Lasers
Place of Origin Wuhan, China
Brand Name STAR OPTIC
Certification RoHS, ISO9001
Model Number WPI
Minimum Order Quantity 5pcs
Price Negotiable
Packaging Details Safe and dust-free packing
Delivery Time Negotiable
Payment Terms T/T, Western Union, Paypal
Supply Ability 50000pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Air Spaced Zero Order λ/4 Quarter Wave Plate Function Convert Linear Polarization To Circular Polarization And Vice Versa
Structure Air Spaced Double-plate Sturcture Main Feature Wide Working Spectral Bandwidth
Coating Both Sides AR Coated Damage Threshold >10J/cm2, 20ns, 20Hz @1064nm
High Light

266nm Zero Order Quarter Wave Plate

,

Quarter Wave Plate 266nm

,

Zero Order Quarter Wave Plate 20Hz
Leave a Message
Product Description

Air Spaced Zero Order λ/4 Quarter Wave Plate, High Damage Threshold

Overview:

Air spaced zero order wave plate is built by placing a spacing ring between the two multi-order wave plates to form an air gab between them. The slow axis of one waveplate is aligned with the fast axis of the other waveplate. To achieve the required retardace will request carefully match the thickness differences of the two multi order waveplates. For high power lasers and applications require to withsthand high damage threshold, air spaced zero order waveplate is certainly a good choice.





Main Features of Air Spaced Zero Order Wave Plate:

  • Air spaced double-plate sturcture
  • Broad working spectral bandwidth
  • Superior in temperature sensitivity and retardation steadniess than lower order waveplates
  • Withstand high damage threshold and support high power lasers





General Specifications of Air Spaced Zero Order λ/4 Quarter Wave Plate:

Material Crystalline Quartz
Dimension Tolerance +0.0/-0.2mm
Surface Quality 20/10 scratch and dig
Clear Aperture >90% central area
Wavefront Distortion <λ/8@632.8nm
Parallelism <1 arc second
Retardation Tolerance <λ/300
Standard Wave

quarter-wave(λ/4)
Coating Both sides AR coated, R<0.25% per face @ central wavelength
Damage Threshold >10J/cm2, 20ns, 20Hz @1064nm







Standard Products of Air Spaced Zero Order λ/4 Quarter Wave Plate:

Part Number Type

Diameter

(mm)

Retardation

(λ)

Wavelength

(nm)

Clear Aperture

(mm)
WPI412-266 Air Spaced 12.7 λ/4 266 11.5
WPI420-266 Air Spaced 20 λ/4 266 18
WPI425-266 Air Spaced 25.4 λ/4 266 22.9
WPI412-355 Air Spaced 12.7 λ/4 355 11.5
WPI420-355 Air Spaced 20 λ/4 355 18
WPI425-355 Air Spaced 25.4 λ/4 355 22.9
WPI412-405 Air Spaced 12.7 λ/4 405 11.5
WPI420-405 Air Spaced 20 λ/4 405 18
WPI425-405 Air Spaced 25.4 λ/4 405 22.9
WPI412-488 Air Spaced 12.7 λ/4 488 11.5
WPI420-488 Air Spaced 20 λ/4 488 18
WPI425-488 Air Spaced 25.4 λ/4 488 22.9
WPI412-532 Air Spaced 12.7 λ/4 532 11.5
WPI420-532 Air Spaced 20 λ/4 532 18
WPI425-532 Air Spaced 25.4 λ/4 532 22.9
WPI412-980 Air Spaced 12.7 λ/4 980 11.5
WPI420-980 Air Spaced 20 λ/4 980 18
WPI425-980 Air Spaced 25.4 λ/4 980 22.9
WPI412-1030 Air Spaced 12.7 λ/4 1030 11.5
WPI420-1030 Air Spaced 20 λ/4 1030 18
WPI425-1030 Air Spaced 25.4 λ/4 1030 22.9
WPI412-1053 Air Spaced 12.7 λ/4 1053 11.5
WPI420-1053 Air Spaced 20 λ/4 1053 18
WPI425-1053 Air Spaced 25.4 λ/4 1053 22.9
WP4212-1064 Air Spaced 12.7 λ/4 1064 11.5
WP4220-1064 Air Spaced 20 λ/4 1064 18
WP4225-1064 Air Spaced 25.4 λ/4 1064 22.9







Retardance Graph of Air Spaced Zero Order Wave Plate:



266nm Air Spaced Zero Order Waveplate

266nm Zero Order Quarter Wave Plate 20Hz Support High Power Lasers 0


355nm Air Spaced Zero Order Waveplate

266nm Zero Order Quarter Wave Plate 20Hz Support High Power Lasers 1


405nm Air Spaced Zero Order Waveplate

266nm Zero Order Quarter Wave Plate 20Hz Support High Power Lasers 2


488nm Air Spaced Zero Order Waveplate

266nm Zero Order Quarter Wave Plate 20Hz Support High Power Lasers 3

532nm Air Spaced Zero Order Waveplate

266nm Zero Order Quarter Wave Plate 20Hz Support High Power Lasers 4

980nm Air Spaced Zero Order Waveplate

266nm Zero Order Quarter Wave Plate 20Hz Support High Power Lasers 5


1030nm Air Spaced Zero Order Waveplate

266nm Zero Order Quarter Wave Plate 20Hz Support High Power Lasers 6


1053nm Air Spaced Zero Order Waveplate

266nm Zero Order Quarter Wave Plate 20Hz Support High Power Lasers 7


1064nm Air Spaced Zero Order Waveplate

266nm Zero Order Quarter Wave Plate 20Hz Support High Power Lasers 8
