Biconcave Optical Cylinder Lens Enlarge Light Thorlabs Cylindrical Lens

Name: Biconcave Optical Cylinder Lens Enlarge Light Thorlabs Cylindrical Lens
Brand: Wuhan Star Optic Technology Co., Ltd
SKU: BCYV
Availability: InStock

Basic Properties

Place of Origin: Wuhan, China

Brand Name: STAR OPTIC

Certification: RoHS, ISO9001

Model Number: BCYV

Trading Properties

Minimum Order Quantity: 5pcs

Price: Negotiable

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 50000pcs/Month

Biconcave (Double-concave) Cylindrical Lens, Rectangular, N-BK7 Overview: The Biconcave (Double-concave) Cylindrical Lens is generally used to utilized to enlarge light in single dimension or change the aspect ratio of the image. The double concave cylindrical lens can separate input collimated ...

Product Details

Highlight:

Biconcave Optical Cylinder Lens

,

Thorlabs Cylindrical Lens Biconcave

,

Enlarge Light Thorlabs Cylindrical Lens

Product Name: Biconcave (Double-concave) Cylindrical Lens

Feature: Rectangular

Function: Eenlarge Light In Single Dimension

Applications: One-dimensional Compression Of Images

Substrate: N-BK7, UVFS And Other Optical Glass

Design Wavelength: 632.8nm

Product Description

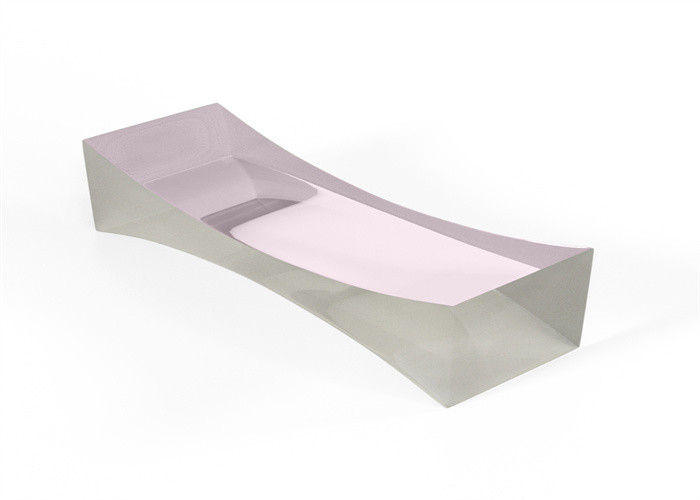

Biconcave (Double-concave) Cylindrical Lens, Rectangular, N-BK7

Overview:

The Biconcave (Double-concave) Cylindrical Lens is generally used to utilized to enlarge light in single dimension or change the aspect ratio of the image. The double concave cylindrical lens can separate input collimated light away from a line. They are best for one-dimensional compression of images, laser line generation and anamorphic beam shaping.

General Specifications Of Biconcave (Double-concave) Cylindrical Lens:

Material	N-BK7
Design Wavelength	632.8nm
Surface Flatness	N<3(0.5)@632.8nm
Surface Quality	60/40 scratch-Dig
Diameter Tolerance	+0/-0.2mm
Thickness Tolerance	±0.2mm
Centration	<3 arc minutes
Focal Length Tolerance	±2%
Clear Aperture	>90%
Chamfer	Protective<0.5mmx45°

Standard Products of Biconcave (Double-concave) Cylindrical Lens:

Part No.	Material	Y (mm)	X (mm)	F (mm)	R1 (mm)	R2 (mm)	Tc (mm)	Te (mm)
BCYV1010F-20	N-BK7	10	10	-20	-20.94	20.94	2	3.2
BCYV1020F-20	N-BK7	10	20	-20	-20.94	20.94	2	3.2
BCYV1010F-25	N-BK7	10	10	-30	-31.24	31.24	2	2.81
BCYV1020F-25	N-BK7	10	20	-30	-31.24	31.24	2	2.81
BCYV2020F-50	N-BK7	20	20	-50	-52.01	52.01	3	4.9
BCYV2020F-75	N-BK7	20	20	-75	-77.77	77.77	3	4.3
BCYV2020F-100	N-BK7	20	20	-100	-103.53	103.53	3	4
BCYV2020F-150	N-BK7	20	20	-150	-155.04	155.04	3	3.6
BCYV2020F-200	N-BK7	20	20	-200	-206.54	206.54	3	3.5
BCYV2020F-250	N-BK7	20	20	-250	-258.05	258.05	3	3.4
BCYV2020F-300	N-BK7	20	20	-300	-309.31	309.56	3	3.3
BCYV2020F-500	N-BK7	20	20	-500	-515.6	515.6	3	3.2
BCYV2020F-1000	N-BK7	20	20	-1000	-1030.69	1030.69	3	3.1

Coating Options of Biconcave (Double-concave) Cylindrical Lens:

Normally our standard Biconcave (Double concave) cylindrical lenses are uncoated. We offer the following four typical antireflective coatings to reduce the reflection light from both surfaces. Choose one of them accordingly apply to your application or discuss with us for your special wavelgnth range.

Single Layer MgF2 Coating	Multi-layer Anti-Reflective Coating

Boradband Anti-Reflective Coating	Dual Wavelength Anti-Reflective Coating

Custom Your Own Lens:

To Maximize and improve the possibility of transforming the design to production and save time, welcome to consult and discuss with us such as material availability, processing difficulty and cost-efficiency.

Zemax Deisgn

Plano Convex Cylinder Lens, Positive Focal Length Lens, Anamorphic Beam Shaping lens 5
