B270 Sapphire Half Ball Lens Excellent Surface Roughness Optical Contact Lenses

Basic Properties
Place of Origin: Wuhan, China
Brand Name: STAR OPTIC
Certification: RoHS, ISO9001
Model Number: BALL
Trading Properties
Minimum Order Quantity: 5pcs
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/Month
Product Summary
UV Fused Silica Half Ball Lens, Fiber Coupling Spheres Or Collimating Lens Overview: The hemispheres of the Half-ball lenses have uniform light dispersion and are commonly used in light collimation/coupling for optical fibers. Our half-ball lenses are made from BK7, B270, Fused Silica, Sapphire. We ...

Product Details

Highlight:

B270 Sapphire Half Ball Lens

,

Optical Contact Lenses B270

,

Excellent Surface Roughness Optical Contact Lenses

Product Name: Half Ball Lens
Material: UV Fused Silica
Surface Quality: 60/40 Scratch And Dig
Usage: Fiber Coupling Or Collimating
Coating: Uncoated, Available Upon Request
Size: Custom
Product Description

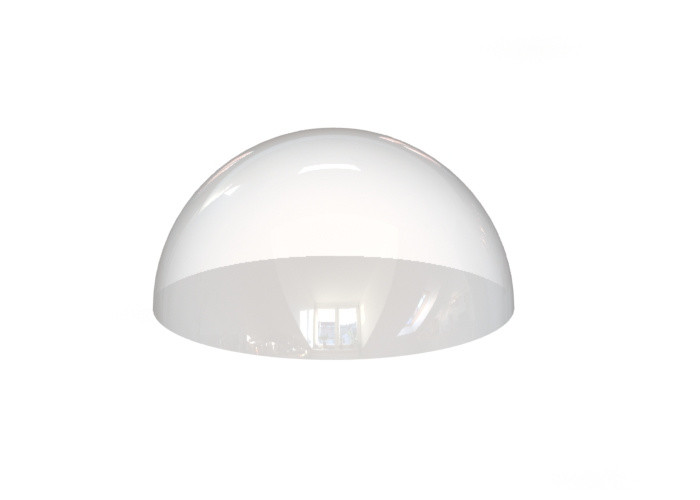

UV Fused Silica Half Ball Lens, Fiber Coupling Spheres Or Collimating Lens

Overview:

The hemispheres of the Half-ball lenses have uniform light dispersion and are commonly used in light collimation/coupling for optical fibers.


Our half-ball lenses are made from BK7, B270, Fused Silica, Sapphire. We can also deliver custom Half-Ball lenses and alternative materials in a range of diameters.






General Specifications of UV Fused Silica Half Ball Lens:

Material UV Fused Silica B270 Sapphire Half Ball Lens Excellent Surface Roughness Optical Contact Lenses
Diameter Tolerance +0/-0.005mm
Surface Quality 60/40 scratch-Dig
Sphericity <0.003mm
Clear Aperture >90%
Coating None, Available





Standard Products of UV Fused Silica Half Ball Lens:

PN. Material

Diameter
(mm)

Radius
(mm)

Thickness
(mm)

Coating
FSHBAL0.5 UVFS 0.5 0.25 0.25 Uncoated
FSHBAL1.0 UVFS 1.0 0.5 0.5 Uncoated
FSHBAL1.5 UVFS 1.5 0.75 0.75 Uncoated
FSHBAL2.0 UVFS 2.0 1.0 1.0 Uncoated
FSHBAL2.5 UVFS 2.5 1.25 1.25 Uncoated
FSHBAL3.0 UVFS 3.0 1.5 1.5 Uncoated
FSHBAL4.0 UVFS 4.0 2.0 2.0 Uncoated
FSHBAL5.0 UVFS 5.0 2.5 2.5 Uncoated
