40 Scratch Dig Optical Glass Lenses Germanium Sapphire Ball Lens In Endoscopy

Overview:

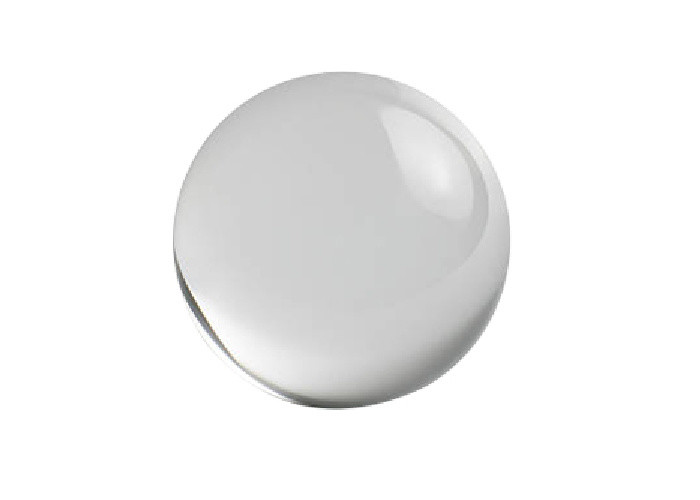

A special form of a thick biconvex optical lens is a ball lens, usually having the geometrical form of a ball (sphere). They are manufactured from a single material, usually an optical glass with good transparency in the wavelength region of interest. A frequently used material is fused silica.

Ball lenses and can focus or collimate light, depending upon the geometry of the input source. They are great optical components for improving signal coupling between fibers, emitters, and detectors. They are also used in endoscopy, bar code scanning, ball pre-forms for aspheric lenses, and sensor applications.

Star Optic provides ball lenses and half ball lenses made from various substrate materials including sapphire, ruby, BK7, UV fused silica, high index glass, and germanium, ZnSe, ZnS with AR coating.

Available diameters are between 0.3 mm to 100 mm, with diameter tolerance (sphericity) <0.3 µm and surface roughness (Ra) <0.007 µm. Custom ball and half ball module options are also available on request.


There are five key parameters needed to understand and use ball lenses: Diameter of Input Source (d)(d), Diameter of Ball Lens (D), Effective Focal Length of Ball Lens (EFL), Back Focal Length of Ball Lens (BFL)and Index of Refraction of Ball Lens (n).


General Specifications of Ball Lens:

Material	UV Fused Silica
Diameter Tolerance	+0/-0.005mm
Surface Quality	60/40 scratch-Dig
Sphericity	<0.003mm
Clear Aperture	>90%
Coating	None, Available




Standard Products of Ball Lens:
