Unocated Optical Glass Lenses UV Fused Silica Sphero Cylindrical Lens

  • Unocated Optical Glass Lenses UV Fused Silica Sphero Cylindrical Lens
Place of Origin Wuhan, China
Brand Name STAR OPTIC
Certification RoHS, ISO9001
Model Number ROD
Minimum Order Quantity 5pcs
Price Negotiable
Packaging Details Safe and dust-free packing
Delivery Time Negotiable
Payment Terms T/T, Western Union, Paypal
Supply Ability 50000pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Rod Lens Material UV Fused Silica
Surface Cylinder Surface Polisehd, End Surfaces Ground Shape Cylinder
Usage Collimating A Divergent Beam In One Dimension Or For Focusing Light To A Line. Size 1mm-custom
Highlight

Unocated Optical Glass Lenses

,

Sphero Cylindrical Lens Unocated

,

UV Fused Silica Sphero Cylindrical Lens
Leave a Message
Product Description

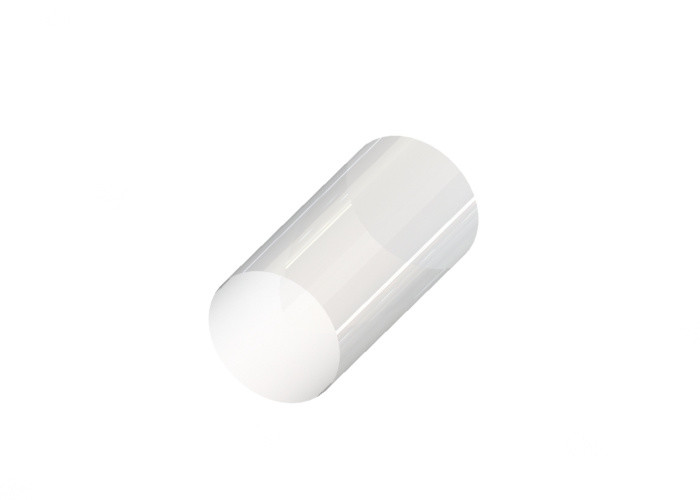

UV Fused Silica Rod Lens, Collimating And Focusing Rod Lens

Overview:
A rod lens is a cylindrical lens which has the geometrical form of a cylinder with polished on the circumference and ground on both ends. Optical performance is similar to a cylinder lens. Rod lenses can be used, for example, for collimating a divergent beam in one dimension or for focusing light to a line.

UV fused silica substrates is another common used material for producing rod lenses in the applications of UV, visible and NIR wavelength range.

If you look for rod lenses of custom sizes, variations in polishing/ ground surfaces and additional coatings, please feel free to contact us.


General Specifications Of Rod Lens:

MaterialUV Fused SilicaUnocated Optical Glass Lenses UV Fused Silica Sphero Cylindrical Lens 0
Surface Quality60/40 scratch-Dig
Diameter Tolerance+0/-0.05mm
Length Tolerance±0.2mm
Clear Aperture>90%
PolishCylinder surface polished, end surfaces ground
CoatingUnocated, Available




Standard Products of Rod Lens:

PN.MaterialDiameter
(mm)		Length
(mm)		Coating
FSROD0204UVFS2.04.0Uncoated
FSROD0306UVFS3.06.0Uncoated
FSROD0408UVFS4.08.0Uncoated
FSROD0510UVFS5.010.0Uncoated
FSROD0515UVFS5.015.0Uncoated
FSROD0520UVFS5.020.0Uncoated
FSROD1020UVFS10.020.0Uncoated
