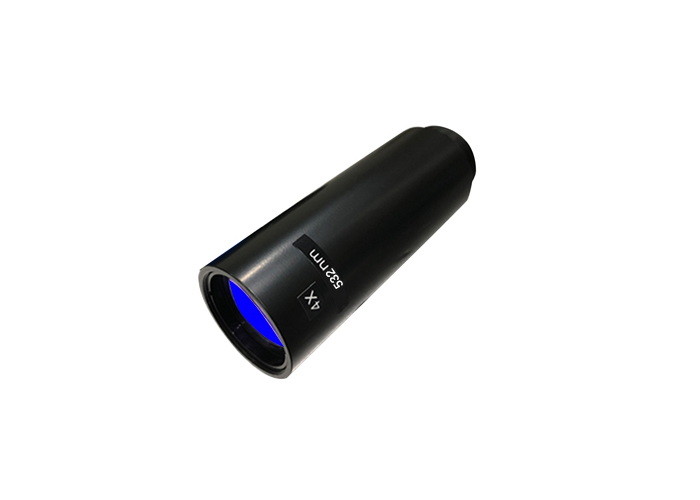

532nm Optical Beam Expander Lens Reduce Beam Diameter N-BK7 27mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Laser Beam Expander | Working Wavelength | 532nm |
|---|---|---|---|
| Lens Material | N-BK7 And UV Fused Silica | Wavefront Error | <λ/4 |
| Magnification | 2x, 3x, 4x, 5x, 6x, 8x, 10x, 12x, 15x, 20x | Diameter | 27mm |
| High Light | 532nm Beam Expander Lens,Optical Beam Expander 532nm,N-BK7 Optical Beam Expander |
||
Product Description
532nm Laser Beam Expander, High Power Magnification Beam Expanders
|
Overview: A Laser Beam Expander will increase the input laser beam by a specific expansion power while decreasing the divergence by the same expansion power, resulting in a smaller collimated beam at a large distance. Laser beam expanders can also be used in reverse to reduce beam diameter rather than expanding it.
Star Optic offers Beam Expanders can expand or reduce the diameter of a collimated beam by a factor of 2, 3, 5, 10, or 20. These Galilean beam expanders use a low-aberration, air-spaced design optimized to provide a wavefront error of less than λ/4 (i.e., diffraction-limited performance) and minimize the impact on the M2 value of the expanded beam. An expanded beam can be focused to a narrow diffraction-limited waist, which can be necessary for use with optics or instruments that have narrow input apertures
We can provide either narrowband or broadband AR coatings besides 532nm wavelength for these fixed-magnification laser beam expanders.
General Specifications of 532nm Laser Beam Expander:
Standard Products Of 532nm Laser Beam Expander:
|
