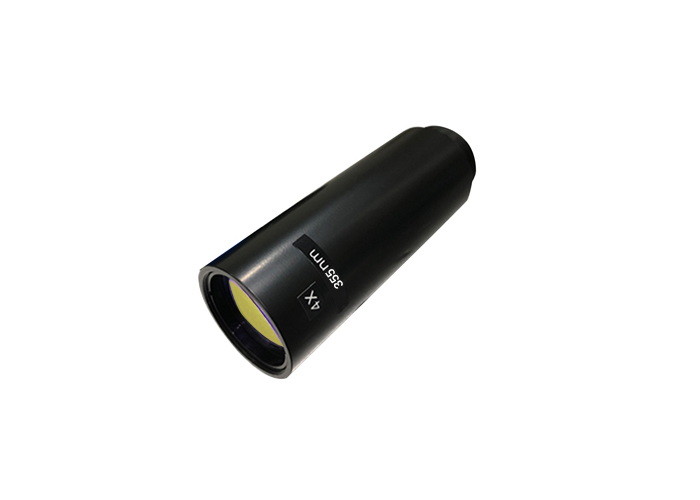

355nm Optical Glass Lenses Fixed Magnification Adjustable Beam Expander

Basic Properties
Place of Origin: Wuhan, China
Brand Name: STAR OPTIC
Certification: RoHS, ISO9001
Model Number: LBE
Trading Properties
Minimum Order Quantity: 5pcs
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/Month
Product Summary
355nm Laser Beam Expander, High Power Magnification Beam Expanders Overview: Laser Beam Expander are optical devices which increases the diameter of the input beam to produce a larger output, but they not only increase the diameter of a collimated laser beam, they also decrease beam divergence. Used ...

Product Details

Highlight:

355nm Optical Glass Lenses

,

Adjustable Beam Expander 355nm

,

Fixed Magnification Adjustable Beam Expander

Product Name: Laser Beam Expander
Working Wavelength: 355nm
Feature: High Power
Apply For: Achieving Smaller And Higher Energy Beam Spot In The Laser Processing Applications
Coating: AR Coating At 355nm
Damage Threshold: >5J/cm2, 20ns, 20Hz, @1064nm
Product Description

355nm Laser Beam Expander, High Power Magnification Beam Expanders

Overview:

Laser Beam Expander are optical devices which increases the diameter of the input beam to produce a larger output, but they not only increase the diameter of a collimated laser beam, they also decrease beam divergence. Used with collimated light, they have important applications in remote sensing, interferometry, and laser scanning.



A beam expander consists of two lenses. First, the beam is diverged with a short focal length lens and then the diverging beam is re-collimated with a larger beam waist and smaller divergence. The lenses are positioned like in an inverted telescope. The light enters in the eyepiece lens and emerges from the objective lens.



These fixed-magnification laser beam expanders are offered with optics that have either narrowband or broadband AR coatings besides 355nm.







General Specifications of 355nm Laser Beam Expander:

Material N-BK7 or UV Fused Silica
Mount Material Black Anodized Aluminum
Transmitted Wavefront Distortion λ/4 @632.8nm (RMS)
Surface Quality 60/40 scratch-Dig
Mount Thread M22x0.75mm
Coating

Multi Layer AR Coating

Total Transmission >98%@Design Wavelength

Damage Threshold

>5J/cm2, 20ns, 20Hz, @1064nm







Standard Products Of 355nm Laser Beam Expander:

PN. Magnification

Wavelength

(nm)

Max Input Aperture

(mm)

Max Eixt Aperture

(mm)

Diameter

(mm)

Length

(mm)

Mount Thread
LBE-2X-355 2 355 6 21.6 27 46.5 M22×0.75
LBE-3X-355 3 355 6 21.6 27 52 M22×0.75
LBE-4X-355 4 355 6 21.6 27 70.5 M22×0.75
LBE-5X-355 5 355 6 21.6 27 76 M22×0.75
LBE-6X-355 6 355 6 21.6 27 62 M22×0.75
LBE-7X-355 7 355 6 21.6 27 63 M22×0.75
LBE-8X-355 8 355 6 21.6 27 64.5 M22×0.75
LBE-10X-355 10 355 6 21.6 27 66 M22×0.75
LBE-12X-355 12 355 6 21.6 27 84.5 M22×0.75
LBE-15X-355 15 355 6 21.6 27 70.5 M22×0.75
LBE-20X-355 20 355 6 21.6 27 87.2 M22×0.75
