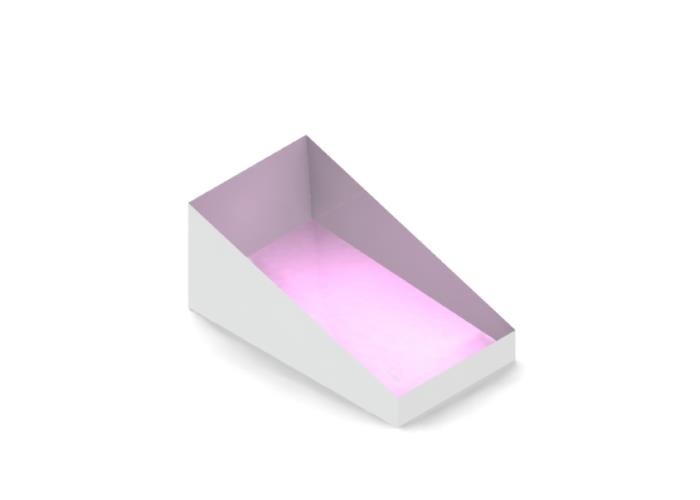

N-SF11 Anamorphic Prism Pair
Basic Properties
Place of Origin:
Wuhan, China
Brand Name:
STAR OPTIC
Certification:
RoHS, ISO9001
Model Number:
ANP
Trading Properties
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Payment Terms:
T/T, Western Union, Paypal
Supply Ability:
50000pcs/Month
Product Summary
Anamorphic Prism Pair, Converts Elliptical Beam to Circular Overview: An anamorphic prism pair is used to expand a laser beam in one dimension. This makes it ideal for converting the elliptical beam shape of laser diodes into a nearly circular one. An average throughput of 95% can be achieved if the ...
Product Details
Highlight:
N-SF11 Anamorphic Prism Pair
,Optical Prisms N-SF11
,Circular Anamorphic Prism Pair
Product Name:
Anamorphic Prism Pair
Applications:
Converting The Elliptical Beam Shape Of Laser Diodes Into A Nearly Circular One
Material:
N-SF11
Best Performance:
When Prism Pairs Are Oriented To Allow Ncident Light Enters The Prism Pair At Brewster's Angle
Size:
12x12x8.5mm
Coating:
Uncoated, AR Coating Available
Product Description
|
Anamorphic Prism Pair, Converts Elliptical Beam to Circular Overview: An anamorphic prism pair is used to expand a laser beam in one dimension. This makes it ideal for converting the elliptical beam shape of laser diodes into a nearly circular one.
An average throughput of 95% can be achieved if the prism pairs are oriented such that the incident light enters the prism pair at Brewster's angle and each surface has the appropriate AR coating for the wavelength of the incident light.
General Specifications of Anamorphic Prism Pair:
Standard Products of Anamorphic Prism Pair:
|
