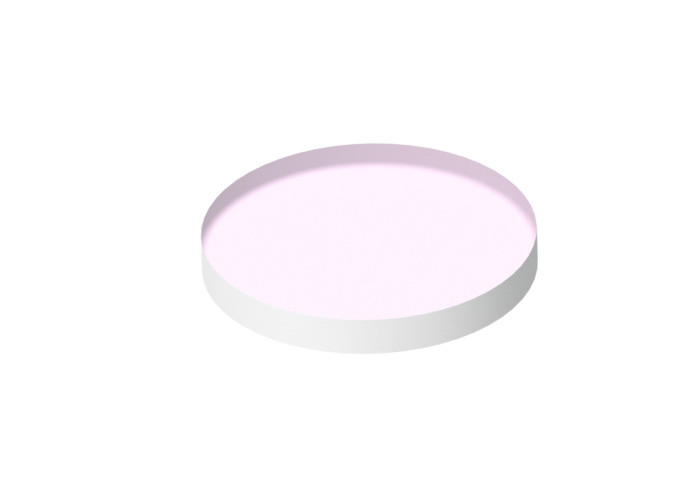

UV Fused Silica Optical Glass Windows 633nm Laser Safety Window

  • UV Fused Silica Optical Glass Windows 633nm Laser Safety Window
Place of Origin Wuhan, China
Brand Name STAR OPTIC
Certification RoHS, ISO9001
Model Number LPW
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Safe and dust-free packing
Delivery Time Negotiable
Payment Terms T/T, Western Union, Paypal
Supply Ability 50000pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Laser Protection Window Material UV Fused Silica
Applications Laser Safety Advantage High Damage Threshold Windows
Surface High Power AR Coating Wavelength 1028nm-1070nm
High Light

UV Fused Silica Optical Glass Windows

,

Optical Glass Windows 633nm

,

633nm Laser Safety Window
Leave a Message
Product Description

Laser Protection Window, UV Fused Silica Laser Windows, High Damage Threshold Windows



Overview:

Laser Protection Windows are for applications which require protecting laser output while minimizing stray light and reflections. Star Optic provides high damage threshold AR Coatings on each side of window to make them an ideal solution to be used in front of lasers for material processing for the purpose of protecting the laser optics from hot material drops.







General Specifications of Laser Protection Windows:

Material UV Fused Silica
Wavefront Distortion <λ@633nm per 25mm
Surface Quality

60/40 scratch-Dig
Dimension Tolerance +0/-0.2mm
Thickness Tolerance ±0.2mm
Parallelism

<1 arc minute (standard)
Clear Aperture >90%
Chamfer Protective<0.5mmx45°
Coating High Damage Threshold AR coating, R<0.5%@specific wavelength
Damage Threshold  >15J/cm2, 20ns, 20Hz, @1064nm







Standard Products of Laser Protection Windows:

Part No. Material

Diameter

(mm)

Thickness

(mm)

 Coating
LPW2001-1028-1070 UVFS 20.0 1.0 1028-1070
LPW2003-1028-1070 UVFS 20.0 3.0 1028-1070
LPW2102-1028-1070 UVFS 21.5 2.0 1028-1070
LPW2204-1028-1070 UVFS 22.35 4.0 1028-1070
LPW2501-1028-1070 UVFS 25.0 1.0 1028-1070
LPW2504-1028-1070 UVFS 25.0 4.0 1028-1070
LPW3001-1028-1070 UVFS 30.0 1.5 1028-1070
LPW3002-1028-1070 UVFS 30.0 2.0 1028-1070
LPW3003-1028-1070 UVFS 30.0 3.0 1028-1070
LPW3006-1028-1070 UVFS 30.0 6.0 1028-1070
LPW3803-1028-1070 UVFS 38.1 3.0 1028-1070







Coating Graphs of Laser Protection Windows:



1028-1070nm Laser Protection Window

UV Fused Silica Optical Glass Windows 633nm Laser Safety Window 0
