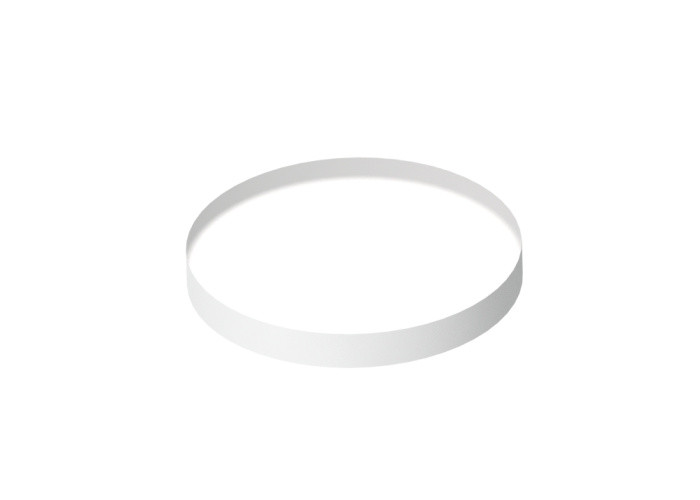

UV-Grade Fused Silica Optical Glass Windows Better Homogeneity

Basic Properties
Place of Origin: Wuhan, China
Brand Name: STAR OPTIC
Certification: RoHS, ISO9001
Model Number: WIN-FS
Trading Properties
Minimum Order Quantity: 1pc
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/Month
Tags

Sapphire Optical Window

Laser Safety Window

Calcium Fluoride Window
Product Summary
UV Fused Silica Windows, Uncoated, High Precision Windows Overview: UV-grade fused silica Wondows are well-suited for applications that benefit from increased transmission deeper into the UV than N-BK7. UV fused silica window also offers a lower index of refraction for a given wavelength, better ...

Product Details

Highlight:

Optical Glass Windows UV-Grade

,

UV-Grade Fused Silica Optical Windows

,

Fused Silica Optical Windows Better Homogeneity
Product Name: Uncoated UV Fused Silica Windows
Feature: Low Coefficient Of Thermal Expansion, Low Index Of Refraction
Applications: UV Wavelength Range
Wavefront Distortion: <λ/10@633nm
Surface Quality: Surface Quality
Coating: Uncoated, Available
Product Description

UV Fused Silica Windows, Uncoated, High Precision Windows

Overview:

UV-grade fused silica Wondows are well-suited for applications that benefit from increased transmission deeper into the UV than N-BK7. UV fused silica window also offers a lower index of refraction for a given wavelength, better homogeneity, and a lower coefficient of thermal expansion than N-BK7.







General Specifications of Uncoated UV Fused Silica Windows:

Material UV-grade Fused Silica
Wavefront Distortion <λ@633nm per 25mm (Standard)
<λ/10@633nm per 25mm (High Precision)
Surface Quality

60/40 scratch-Dig (Standard)

20/10 Scratch-Dig (high precision)
Dimension Tolerance +0/-0.2mm
Thickness Tolerance ±0.2mm
Parallelism

<1 arc minute (standard)

<10 arc seconds (high precision)
Clear Aperture >90%
Chamfer Protective<0.5mmx45°
Coating Uncoated, available







Standard Products of Uncoated UV Fused Silica Windows:

Part No. Material

Diameter

(mm)

Thickness

(mm)

 Grade Coating
WIN1003-FS UVFS 10.0 3.0 Standard Uncoated
WIN1203-FS UVFS 12.7 3.0 Standard Uncoated
WIN1503-FS UVFS 15.0 3.0 Standard Uncoated
WIN2003-FS UVFS 20.0 3.0 Standard Uncoated
WIN2503-FS UVFS 25.4 3.0 Standard Uncoated
WIN3003-FS UVFS 30.0 3.0 Standard Uncoated
WIN3803-FS UVFS 38.1 3.0 Standard Uncoated
WIN5006-FS UVFS 50.8 6.35 Standard Uncoated
WIN1006-FS UVFS 10.0 6.35 High Precision Uncoated
WIN1206-FS UVFS 12.7 6.35 High Precision Uncoated
WIN1506-FS UVFS 15.0 6.35 High Precision Uncoated
WIN2006-FS UVFS 20.0 6.35 High Precision Uncoated
WIN2506-FS UVFS 25.4 6.35 High Precision Uncoated
WIN3006-FS UVFS 30.0 6.35 High Precision Uncoated
WIN3806-FS UVFS 38.1 6.35 High Precision Uncoated
WIN5010-FS UVFS 50.8 10.0 High Precision Uncoated
