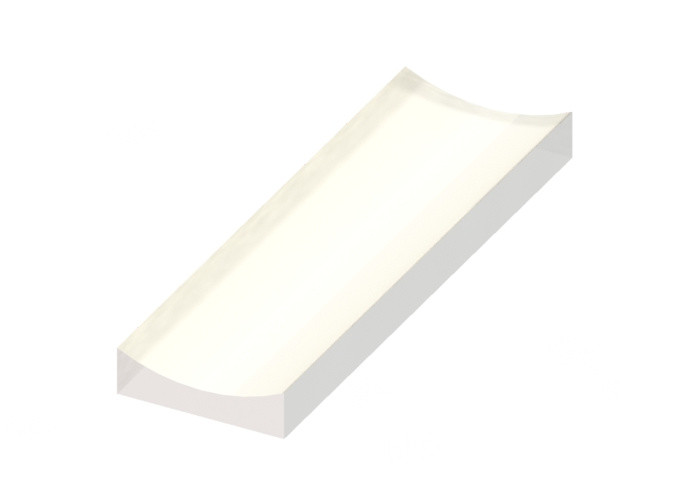

Plano Optical Cylinder Lens N-SF11 Available Uncoated Custom Lens

Basic Properties
Place of Origin: Wuhan, China
Brand Name: STAR OPTIC
Certification: RoHS, ISO9001
Model Number: CYV
Trading Properties
Minimum Order Quantity: 5pcs
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/Month
Tags

Cylindrical Spherical Lens

Cylinder Laser Lenses

Double Concave Lens
Product Summary
Plano Concave Cylindrical Lens, Rectangular, N-BK7 Overview: Plano Concave Cylindrical lens is also called negative cylindrical lens act as plano-concave spherical lenses, except on only one axis. These lenses are used in applications that require one dimensional shaping of a light source. A typical ...

Product Details

Highlight:

Optical Cylinder Lens N-SF11

,

N-SF11 Plano Cylindrical Lens

,

Optical Cylinder Lens Available Uncoated
Product Name: Plano Concave Cylindrical Lens
Substrate: Optical Glass
Shape: Retangular
Applications: Anamorphic Shaping Of A Beam.
Design Wavelength: 632.8nm
Surface Flatness: N<3(0.5)@632.8nm
Product Description

Plano Concave Cylindrical Lens, Rectangular, N-BK7

Overview:

Plano Concave Cylindrical lens is also called negative cylindrical lens act as plano-concave spherical lenses, except on only one axis. These lenses are used in applications that require one dimensional shaping of a light source. A typical application is to use a single cylindrical lens to turn a collimated laser into a line generator. Pairs of cylindrical lenses may be used to anamorphically shape images. To minimize the introduction of aberration, the curved surface of the lens should face the source when used to diverge a beam.



Plano Optical Cylinder Lens N-SF11 Available Uncoated Custom Lens 0







General Specifications Of Plano Concave Cylindrical Lens:

Material N-BK7, UV FS, N-SF11, CaF2, Si, Ge, ZnSe, Sapphire Plano Optical Cylinder Lens N-SF11 Available Uncoated Custom Lens 1
Design Wavelength 632.8nm
Surface Flatness N<3(0.5)@632.8nm
Surface Quality 60/40 scratch-Dig
Diameter Tolerance +0/-0.2mm
Thickness Tolerance ±0.2mm
Centration <3 arc minutes
Focal Length Tolerance ±2%
Clear Aperture >90%
Chamfer Protective<0.5mmx45°







Standard Products of Plano Concave Cylindrical Lens:

Part No. Material

H

(mm)

L

(mm)

F

(mm)

R

(mm)

Tc

(mm)

Te

(mm)
CYV1010F-12 N-BK7 10 10 -12.7 -6.54 2 4.3
CYV1020F-12 N-BK7 10 20 -12.7 -6.54 2 4.3
CYV1010F-25 N-BK7 10 10 -25.4 -13.07 2 3.0
CYV1020F-25 N-BK7 10 20 -25.4 -13.07 2 3.0
CYV1010F-30 N-BK7 10 10 -30 -15.44 2 2.8
CYV1020F-30 N-BK7 10 20 -30 -15.44 2 2.8
CYV1010F-40 N-BK7 10 10 -40 -20.59 2 2.6
CYV1020F-40 N-BK7 10 20 -40 -20.59 2 2.6
CYV2020F-50 N-BK7 20 20 -50 -25.73 2 4.0
CYV2020F-75 N-BK7 20 20 -75 -38.60 2 3.3
CYV3030F-100 N-BK7 30 30 -100 -51.47 3 5.2
CYV3030F-150 N-BK7 30 30 -150 -77.20 3 4.5
CYV3030F-200 N-BK7 30 30 -200 -102.93 3 4.1









Coating Options of Plano Concave Cylindrical Lens:

These standard N-BK7 plano concave cylinder lenses are available uncoated or with one of our four typical antirefection coatings below, which can reduce the amount of beam relfected from each face of the lens.



Single Layer MgF2 Coating Multi-layer Anti-Reflective Coating
Plano Optical Cylinder Lens N-SF11 Available Uncoated Custom Lens 2 Plano Optical Cylinder Lens N-SF11 Available Uncoated Custom Lens 3



Boradband Anti-Reflective Coating



Dual Wavelength Anti-Reflective Coating
Plano Optical Cylinder Lens N-SF11 Available Uncoated Custom Lens 4 Plano Optical Cylinder Lens N-SF11 Available Uncoated Custom Lens 5







Custom Your Own Lens:

You have your full design freedom, and we are able to work with complex designs to get you exactly what you need including optical design, mechanical design and optical coating design.



Zemax Deisgn

Plano Optical Cylinder Lens N-SF11 Available Uncoated Custom Lens 6

Zemax Deisgn

Plano Optical Cylinder Lens N-SF11 Available Uncoated Custom Lens 7



Solidworks Design

Plano Optical Cylinder Lens N-SF11 Available Uncoated Custom Lens 8



Thin Film Coating Design

Plano Optical Cylinder Lens N-SF11 Available Uncoated Custom Lens 9



Miss. Tina Tian

Sales and Marketing Manager
