150W Laser Crystals 2500nm Electro Optic Crystal Low Dielectric Constant
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | E-O Crystal BBO | Applications | High Power DPSS Lasers |
|---|---|---|---|
| Wavelength Range | 200nm-2500nm | Advantage | Temperature Stability |
| Electro-optic Coefficients | G11=2.7pm/v, G22, G31<0.1g11 | Usage | Q-Switching A Cw Diode Pumped Nd:YAG Laser With Average Power>50W |
| High Light | 150W Laser Crystals,Laser Crystals 2500nm,2500nm Electro Optic Crystal |
||
Product Description

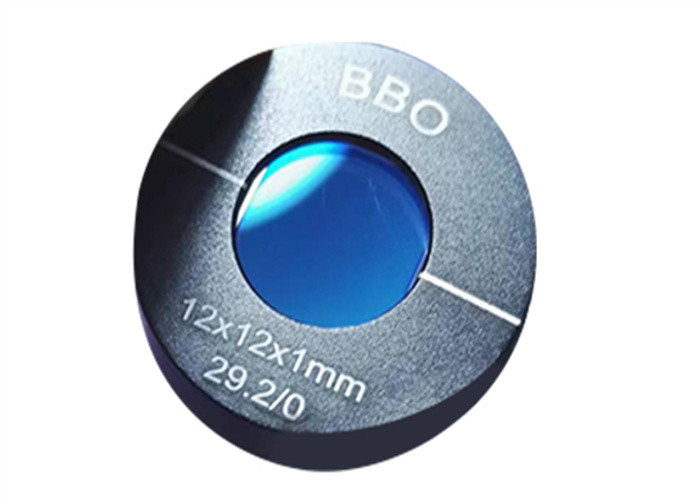

E-O Crystal BBO
|
Overview: BBO crystal is an excellent electro-optic crystal for high power applications at the wavelength range from 200nm to 2500nm. BBO has a high damage threshold and a low dielectric constant and is useful in high repetetion rate, high average power (up to 150W) diode pumped solid state lasers (DPSS lasers). BBO has significant advantages over other materials in terms of laser power handling abilities, temperature stability, and substantial freedom from piezoelectric ringing. BBO has electro-optic coefficients g11=2.7pm/v, g22, g31<0.1g11. It can be used for Q-Switching a cw diode pumped Nd:YAG laser with average power>50W.
General Specifications Of BBO crystals:
|
