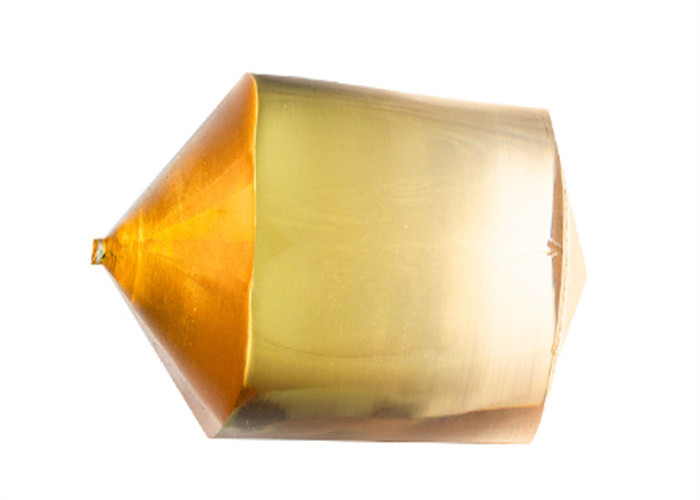

500nm Laser Crystals YVO4 Birefringent Crystal With Good Mechanical

Basic Properties
Place of Origin: Wuhan, China
Brand Name: STAR OPTIC
Certification: RoHS, ISO9001
Model Number: YVO4
Trading Properties
Minimum Order Quantity: 1pc
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/Month
Tags

BBO Nonlinear Crystal

Nd Yag Laser Rods

Negative Uniaxial Crystal
Product Summary
Birefringent Crystal YVO4 Overview: The Yttrium Orthovanadate (YVO4) is a positive uniaxial crystal grown with Czochralski method. It has good mechanical and physical properties and is ideal for optical polarizing components due to its wide transparency range and large birefringence. It is an ...

Product Details

Highlight:

500nm Laser Crystals

,

Laser Crystals YVO4

,

YVO4 Birefringent Crystal
Product Name: Birefringent Crystal YVO4
Applications: Idea Material For Beam Displacers, Glan Polarizers
Wavelength Range: 500nm ~ 4000nm
Mohs Hardness: 5
Crystal Class: Positive Uniaxial With No=na=nb, Ne=nc
Crystal Structure: Zircon Tetragonal
Product Description

Birefringent Crystal YVO4

Overview:

The Yttrium Orthovanadate (YVO4) is a positive uniaxial crystal grown with Czochralski method. It has good mechanical and physical properties and is ideal for optical polarizing components due to its wide transparency range and large birefringence. It is an excellent synthetic substitute for Calcite (CaCO3) and Rutile (TiO2) crystals in fiber optical applications such as isolators, circulators, beam displacers, Glan polarizers and other polarizing optics.







General Specifications Of YVO4:

Dimension Tolerance (W±0.1mm) x (H±0.1mm) x (L±0.2mm)
Optical Axis Orientation ±0.5°
Surface Quality Better than 20/10 Scratch and Dig
Clear Aperture >90% Central
Surface Flatness λ/4@633 nm
Parallelism <15 arc seconds
Perpendicularity <10 arc minutes
AR Coating Upon Request







Physical and Optical Properties of YVO4:

Crystal Structure Zircon tetragonal, space group D4h
Lattice Constants a=b=7.12, c=6.29
Density 4.22 g/cm3
Mohs Hardness 5 glass like
Hygroscopic Susceptibility No
Transparency Range 500nm ~ 4000nm
Thermal Conductivity Coefficient ⊥C: 5.10w/m/K
||C: 5.23 w/m/K
Thermal Optical Coefficients dna/dT=8.5x10-6/K
dnc/dT=3.0x10-6/K
Thermal Expansion Coefficient aa=4.43x10-6/K
ac=4.43x10-6/K
Crystal Class Positive uniaxial with no=na=nb, ne=nc
Refractive Index
Birefringence (dn=ne-no)
Walk-Off Angle at 45 deg (p)		 no=1.9929, ne=2.2154, dn=0.2225, p=6.04°, @630nm
no=1.9500, ne=2.1554, dn=0.2054, p=5.72°, @1300nm
no=1.9447, ne=2.1486, dn=0.2039, p=5.69°, @1550nm
Sellmeier Equations (λin um) no2=3.77834+0.069736/(λ2 - 0.04724) - 0.0108133λ2
ne2=4.59905+0.110534/(λ2 - 0.04813) - 0.0122676λ2
