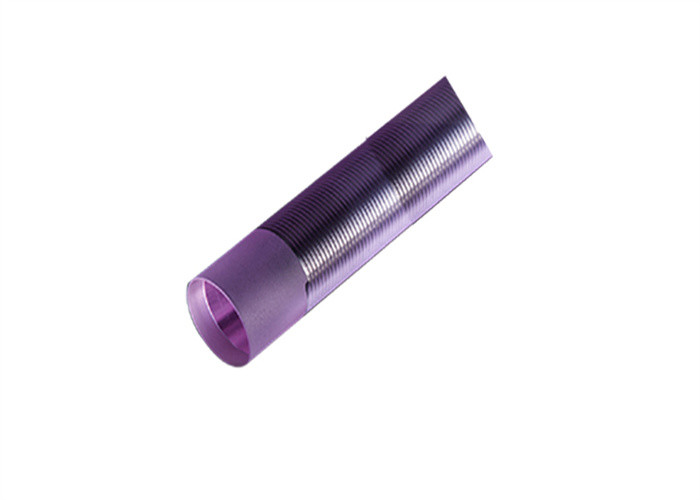

807.5nm Laser Crystals Grooved Nd Yag Laser Rods With Good Beam Quality

  • 807.5nm Laser Crystals Grooved Nd Yag Laser Rods With Good Beam Quality
Place of Origin Wuhan, China
Brand Name STAR OPTIC
Certification RoHS, ISO9001
Model Number Grooved Nd:YAG
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Safe and dust-free packing
Delivery Time Negotiable
Payment Terms T/T, Western Union, Paypal
Supply Ability 50000pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Laser Crystal Grooved Nd:YAG Crystal Structure Cubic
Mohs Hardness 8.5 Lasing Wavelengths 1064nm
Pump Wavelength 807.5 Nm Polarized Emission Unpolarized
High Light

807.5nm Laser Crystal

,

Nd Yag Laser Rods 807.5nm

,

Laser Crystal Grooved
Leave a Message
Product Description

Laser Crystal Grooved Nd:YAG

Overview:

The grooved Nd:YAG laser rods have the improvements on the beam quality, thermal effect reduction and the efficiency when compared with the common Nd:YAG laser rods.







General Specifications Of Grooved Nd:YAG:

Nd Dopant Level 0.5-1.1 atm%
Orientation <111> crystalline direction (±0.5deg)
Dimension Tolerances Diameter: ±0.05mm
Length: ±0.5mm
Surface Quality 10/5 Scratch and Dig
Clear Aperture >90%
Surface Flatness <λ/10@633nm
Wavefront Distortion <λ/8@633nm
Parallelism <10 arc seconds
Perpendicularity <5 arc minutes
Chamfer <0.1mmx45°
AR Coating Reflectivity R<0.25%@1064 nm per surface
Damage threshold over 750MW/cm2@1064nm, 10 ns and 10 Hz
Other coating is per your request
Extinction Ratio Rods with diameter from 3 mm to 6.35 mm and with length to 100 mm: >30dB
Rods with diameter from 7 mm to 10 mm and with length to 100 mm: >28dB







Physical Properties of Grooved Nd:YAG:

Chemical Formula Nd:Y3Al5O12
Crystal Structure Cubic
Lattice Constants 12.01
Concentration ~1.2 x 1020 cm-3
Melting Point 1970℃
Density 4.56 g/cm3
Mohs Hardness 8.5
Refractive Index 1.82
Thermal Conductivity 14 W/m /K @20℃, 10.5 W /m /K @100℃
Thermal Expansion Coefficient 7.8 x 10-6/K [111], 0 - 250℃







Optical Properties of Grooved Nd:YAG:

Lasing Wavelengths 1064nm
Photon Energy 1.86x10-19J@1064nm
Stimulated Emission Cross-Section 2.8x10-19cm2
Relaxation Time of Terminal Lasing Level 30ns
Radiative Lifetime 550us
Spontaneous Fluorescence 230us
Loss Coefficient 0.003 cm-1@1064nm
Pump Wavelength 807.5 nm
Absorption band at pump wavelength 1nm
Linewidth 0.6nm
Polarized Emission Unpolarized
Thermal Birefringence High
