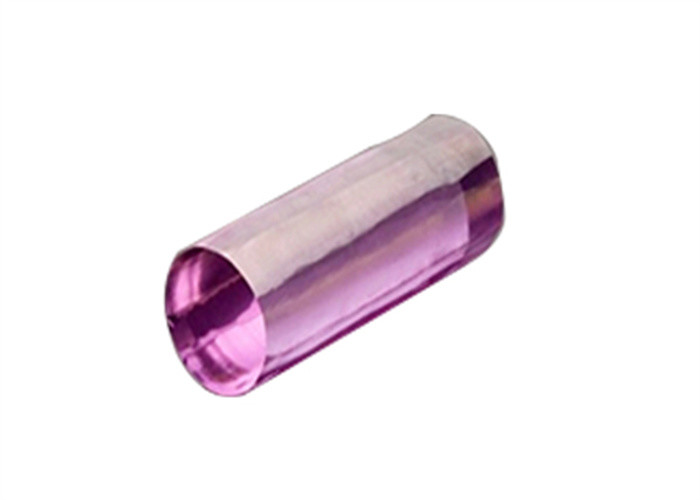

Zircon Tetragonal Laser Crystals 914nm ND Yvo4 Crystal Invisible Scattering

Basic Properties
Place of Origin: Wuhan, China
Brand Name: STAR OPTIC
Certification: RoHS, ISO9001
Model Number: Nd:YVO4
Trading Properties
Minimum Order Quantity: 1pc
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/Month
Tags

BBO Nonlinear Crystal

Nd Yag Laser Rods

Negative Uniaxial Crystal
Product Summary
Laser Crystal Nd:YVO4 Overview: Nd:YVO4 crystal is one of the most efficient laser host crystal currently existing for diode laser pumped solid state lasers. Its large stimulated emission cross-section at lasing wavelength, high absorption coefficient and wide absorption bandwidth at pump wavelength...

Product Details

Highlight:

Laser Crystals 914nm

,

914nm ND Yvo4 Crystal

,

ND Yvo4 Crystal Invisible Scattering
Product Name: Laser Crystal Nd:YVO4
Feature: The Most Efficient Laser Host Crystal For Diode Laser Pumped Solid State Lasers
Crystal Class: Positive Uniaxial
Diode Pumped Optical To Optical Efficiency: >60%
Nd Dopant Level: 0.1-5.0atm%
Mohs Hardness: 5
Product Description

Laser Crystal Nd:YVO4

Overview:

Nd:YVO4 crystal is one of the most efficient laser host crystal currently existing for diode laser pumped solid state lasers. Its large stimulated emission cross-section at lasing wavelength, high absorption coefficient and wide absorption bandwidth at pump wavelength, high laser induced damage threshold as well as good physical, optical and mechanical properties make Nd:YVO4 an excellent crystal for high power, stable and cost effective diode pumped solid-state lasers.







General Specifications Of Nd:YVO4:

Nd Dopant Level 0.1-5.0atm%
Scattering Invisible, probed with a He-Ne laser
Orientation Tolerance ±0.5deg
Dimensional Tolerance ±0.1mm
Surface Quality 10/5 Scratch and Dig
Clear Aperture >90%
Surface Flatness <λ/10@633nm
Wavefront Distortion <λ/8@633nm
Parallelism <10 arc seconds
End-faces Configuration Plano/Plano
Intrinsic Loss < 0.1%cm-1
Coating AR1064&HT808: R<0.1%@1064nm, R<5%@808nm
HR1064&HT808&HR532: R>99.8%@1064nm, R<5%@808nm, r="">99%@532nm
AR1064: R<0.1%@1064nm







Physical Properties of Nd:YVO4:

Atomic Density ~1.37x1020 atoms/cm3
Crystal Structure Zircon Tetragonal, space group D4h
a=b=7.12, c=6.29
Density 4.22 g/cm3
Mohs Hardness Glass-like, ~5
Thermal Expansion Coefficient a=4.43x10-6/K, c=11.37x10-6/K







Optical Properties of Nd:YVO4 (typically for 1.1 atm% Nd:YVO4, a-cut crystals)

Lasing Wavelengths 914nm, 1064nm, 1342nm
Thermal Optical Coefficient dna/dT=8.5x10-6/K, dnc/dT=3.0x10-6/K
Stimulated Emission Cross-Section 25.0x10-19cm2@1064nm
Fluorescent Lifetime 90us @808nm, (50us @808 nm for 2atm% Nd doped)
Absorption Coefficient 31.4 cm-1@808nm
Absorption Length 0.32 mm @808nm
Intrinsic Loss Less than 0.1% cm-1@1064nm
Gain Bandwidth 0.96 nm (257 GHz) @1064nm
Polarized Laser Emission p polarization, Parallel to optic axis (c-axis)
Diode Pumped Optical to Optical Efficiency >60%
Crystal Class Positive uniaxial, no=na=nb, ne=nc,
no=1.9573, ne=2.1652, @1064nm
no=1.9721, ne=2.1858, @808nm
no=2.0210, ne=2.2560, @532nm
Sellmeier Equation(for pure YVO4 crystals, λ in um) no2=3.77834+0.069736/(λ2-0.04724)-0.0108133λ2 ne2=4.59905+0.110534/(λ2-0.04813)-0.0122676λ2







Laser Properties (Nd:YVO4 VS Nd:YAG):

Laser Crystal Nd doped σ α τ La Pth η
(atm%) (x10-19cm2) (cm-1) (cm-1) (mm) (mW) ( %)
Nd:YVO4(a-cut) 1.1 25 31.2 90 0.32 78 48.6
2 72.4 50 0.14
Nd:YVO4(c-cut) 1.1 7 9.2 90   231 45.5
Nd:YAG 0.85 6 7.1 230 1.41 115 38.6
