Uncoated Rhomboid Prism BK7 Lateral Displacement Beam
Basic Properties
Place of Origin:
Wuhan, China
Brand Name:
STAR OPTIC
Certification:
RoHS, ISO9001
Model Number:
PTP
Trading Properties
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Payment Terms:
T/T, Western Union, Paypal
Supply Ability:
50000pcs/Month
Product Summary
Rhomboid Prism, Lateral Displacement Of Beam Overview: Rhomboid prisms are commonly used to displace a laser beam without changing its direction. In imaging applications, rhomboid prisms will displace the optical axis without inverting the image. The lateral displacement is equal to the length of ...
Product Details
Highlight:
Uncoated Rhomboid Prism
,Rhomboid Prism BK7
,BK7 Lateral Displacement Beam Splitter
Product Name:
Rhomboid Prisms
Usage:
Displace A Laser Beam Without Changing Its Direction
Output Beam Parallel To The Input Beam Deviation:
<30 Arc Seconds Between Output Beam Parallel To The Input Beam
Applications:
Stereoscopic System And Periscope System.
Angle Tolerance:
<5 Arc Seconds
Cosmetic:
60/40 Scratch And Dig
Product Description
Rhomboid Prism, Lateral Displacement Of Beam
|

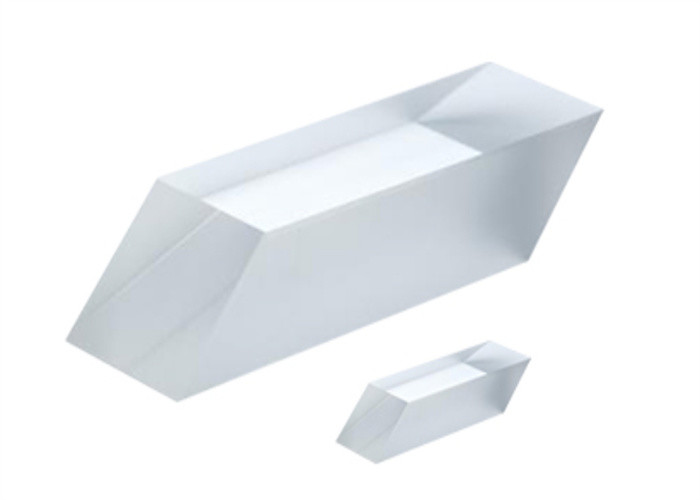

Overview: Rhomboid prisms are commonly used to displace a laser beam without changing its direction. In imaging applications, rhomboid prisms will displace the optical axis without inverting the image. The lateral displacement is equal to the length of the prism (specified by dimension D).
Star Optic can offer high tolerance angles better than 5 arcseconds and total beam deviation that keep the output beam parallel to the input beam to within 30 arcseconds. Higher transmission rate can be achieved by anti-reflective coating on the input and output surfaces.
They are ideal for demanding displacement applications such as stereoscopic system and periscope system.
General Specifications of Rhomboid prisms:
Standard Products of Rhomboid prisms:
|
