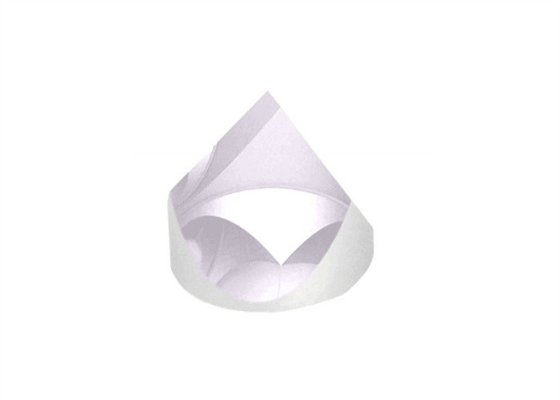

180° Reflector Optical Prisms 632.8nm Corner Cube Retroreflector

Basic Properties
Place of Origin: Wuhan, China
Brand Name: STAR OPTIC
Certification: RoHS, ISO9001
Model Number: PTP
Trading Properties
Minimum Order Quantity: Negotiable
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/Month
Product Summary
Corner Cube Retroreflectors, Retroreflector Prisms, 180° Reflector Overview: Corner Cube Retroreflectors are designed to reflect any ray or beam entering the prism face, regardless of the orientation of the prism, back onto itself. The 180deg reflection is independent of entrance beam angle which ...

Product Details

Highlight:

180° Reflector Optical Prisms

,

Optical Prisms 632.8nm

,

632.8nm Corner Cube Retroreflector

Product Name: Corner Cube Retroreflector
Application: Precision Alignment
Reflection Angle: 180 Degrees
Diameter: 12.7mm, 15mm, 25.4mm, 38.1mm, 50.8mm
Flatness: <λ/4@632.8nm For Input Surface, <λ/10@632.8nm For Dihedral Surfaces
Beam Deviation: <3 Arc Seconds
Product Description

Corner Cube Retroreflectors, Retroreflector Prisms, 180° Reflector

Overview:

Corner Cube Retroreflectors are designed to reflect any ray or beam entering the prism face, regardless of the orientation of the prism, back onto itself.



The 180deg reflection is independent of entrance beam angle which makes it outstanding in the applications where precision alignment is impossible or time consuming.



Corner Cube Retroreflectors are available with the dihedral surfaces either uncoated or coated with silver. The silver coating provides a larger acceptance angle while the uncoated option, which relies on total internal reflection, provides optimum reflectivity. The input face is available uncoated or coated with an antireflection coating.







General Specifications of Corner Cube Retroreflector:

Material BK7 180° Reflector Optical Prisms 632.8nm Corner Cube Retroreflector
Dimension Tolerance +0/-0.2mm
Angle Tolerance Refer to below list
Flatness

<λ/4@632.8nm for input surface,

<λ/10@632.8nm for dihedral surfaces

Wavefront Distortion <λ/2@632.8nm
180° Deviation <5 arc seconds
Surface Quality 60/40scratch and dig
Clear Aperture >80%
Coating No coating, available







Standard Products of Corner Cube Retroreflector:

PN. Material

Diameter

(mm)

Height

(mm)

Beam Deviation

(arcsec)

CNP1210-10 N-BK7 12.7 10.16 10
CNP1511-10 N-BK7 15.0 11.00 10
CNP2519-5 N-BK7 25.4 19.05 5
CNP3829-5 N-BK7 38.1 29.21 5
CNP5038-5 N-BK7 50.8 38.10 5
CNP2519-3 N-BK7 25.4 19.05 3
CNP3829-5 N-BK7 38.1 29.21 3
CNP5038-5 N-BK7 50.8 38.10 3
