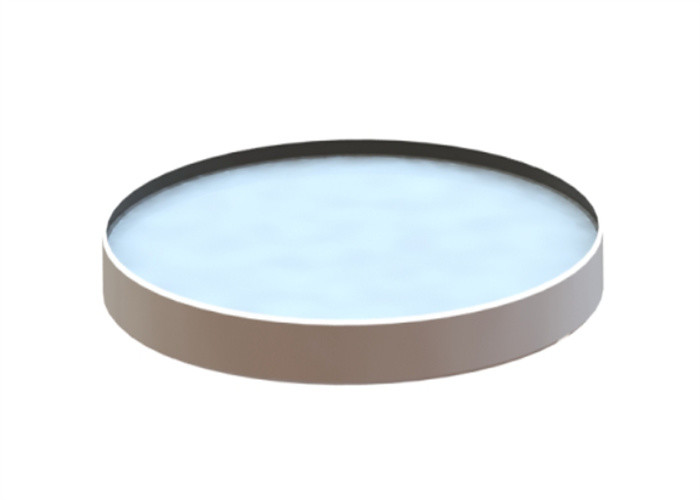

Non-Polarizing Plate BeamSplitter, Insensitive To Input Beam Polarization

Overview:

Non-Polarizing Plate Beamsplitters are coated with dielectric layers to increase system performance while maintaining high laser damage thresholds and the polarization state of the input beam. For example, in the case of a 50/50 non-polarizing beamsplitter, the transmitted P and S polarization states and the reflected P and S polarization states are split at the design ratio.



These Non-polarizing Plate beamsplitters are ideal for use in demanding laser applications where polarization control is critical.






General Specifications of Non-polarizing Plate Beamsplitter:

Material BK7, UV Fused Silica
Dimension Tolerance +0/-0.2mm
Thickeness Tolerance ±0.2mm
Clear Aperture >90%
Flatness λ/4@632.8nm
Parallelism <1 arc minutes
Surface Quality 60/40 Scratch and Dig
Coating Non-polarizing beamsplitting Coating on front surface
AR coating on back surface
T/R Tolerance ±5%
Polarization

|Rs-Rp|<5%
Damage Threshold >3J/cm2, 20ns, 20Hz, @1064nm


Non-polarizing Dielectric Layers Optical Beam Splitters Plate 20ns Increase System Performance 0




Standard Products of Non-polarizing Plate Beamsplitter:

Part No. Material Dimension
(mm)		 Thickness
(mm)		 T/R
(%)		 Wavelength
(nm)		 AOI
(°)
NPBS12-355-45 UVFS 12.7 3.0 50/50 355 45
NPBS25-355-45 UVFS 25.4 3.0 50/50 355 45
NPBS50-355-45 UVFS 50.8 3.0 50/50 355 45
NPBS12-532-45 N-BK7 12.7 3.0 50/50 532 45
NPBS25-532-45 N-BK7 25.4 3.0 50/50 532 45
NPBS50-532-45 N-BK7 50.8 3.0 50/50 532 45
NPBS12-633-45 N-BK7 12.7 3.0 50/50 633 45
NPBS25-633-45 N-BK7 25.4 3.0 50/50 633 45
NPBS50-633-45 N-BK7 50.8 3.0 50/50 633 45
NPBS12-780-45 N-BK7 12.7 3.0 50/50 780 45
NPBS25-780-45 N-BK7 25.4 3.0 50/50 780 45
NPBS50-780-45 N-BK7 50.8 3.0 50/50 780 45
NPBS12-1064-45 N-BK7 12.7 3.0 50/50 1064 45
NPBS25-1064-45 N-BK7 25.4 3.0 50/50 1064 45
NPBS50-1064-45 N-BK7 50.8 3.0 50/50 1064 45







Coating Graphs of Non-polarizing Plate Beamsplitter:



355nm 50:50 Non-polarizing Plate Beamsplitter

Non-polarizing Dielectric Layers Optical Beam Splitters Plate 20ns Increase System Performance 1



532nm 50:50 Non-polarizing Plate Beamsplitter

Non-polarizing Dielectric Layers Optical Beam Splitters Plate 20ns Increase System Performance 2



633nm 50:50 Non-polarizing Plate Beamsplitter

Non-polarizing Dielectric Layers Optical Beam Splitters Plate 20ns Increase System Performance 3



780nm 50:50 Non-polarizing Plate Beamsplitter

Non-polarizing Dielectric Layers Optical Beam Splitters Plate 20ns Increase System Performance 4



1064nm 50:50 Non-polarizing Plate Beamsplitter

Non-polarizing Dielectric Layers Optical Beam Splitters Plate 20ns Increase System Performance 5
