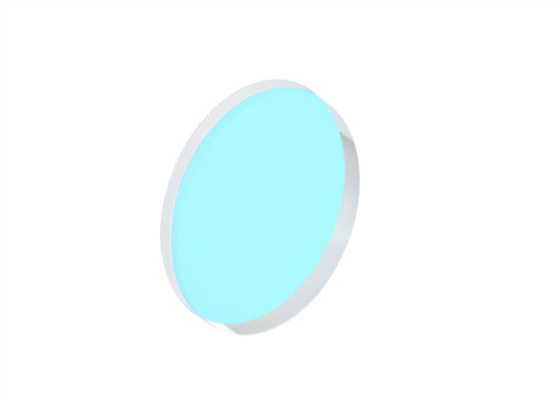

Nd YAG Output Coupler Mirror 1064nm Partially Reflective Mirror In Laser Cavities

  • Nd YAG Output Coupler Mirror 1064nm Partially Reflective Mirror In Laser Cavities
Place of Origin Wuhan, China
Brand Name STAR OPTIC
Certification RoHS, ISO9001
Model Number LOC
Minimum Order Quantity 5pcs
Price Negotiable
Packaging Details Safe and dust-free packing
Delivery Time Negotiable
Payment Terms T/T, Western Union, Paypal
Supply Ability 50000pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Nd:YAG Laser Output Coupler Wavelength 1064nm
Transmisstance 2%, 5%, 20%, 30%, 40%, 50%, 70%, 90%, 95% Material N-BK7
Usage Laser Cavities To Transmit A Portion Of The Resonating Intracavity Beam Coating Partial Reflective Coating On Front Surface And AR Coating On Back Surface
Highlight

Nd YAG Output Coupler Mirror

,

Output Coupler Mirror 1064nm

,

1064nm Partially Reflective Mirror
Leave a Message
Product Description

Nd:YAG Laser Output Coupler, Partially Reflective Mirrors, Various Transmittances

Overview:
Nd:YAG Laser Output Couplers are partially reflective mirrors used in laser cavities to transmit a portion of the resonating intracavity beam. The first surface of these output couplers is coated with a partially reflective mirror coating while the back surface is coated with an anti-reflection coating at the laser wavelength to prevent reflection losses. In addition to being used as output couplers, these optics can also be used as partial reflectors for beam attenuation or as general beamsplitters.



General Specifications of Nd:YAG Laser Output Coupler:

MaterialBK7 Grade A optical glass, UV grade fused silica
Dimension Tolerance+0.0/-0.2mm
Thickness Tolerance±0.2mm
Clear Aperture>90%
Surface Quality60/40 sctrach and dig
Parallelism>1 arc minute
Flatness<λ/8@63nm
ChamferProtected <0.5mmx45deg
Coating

Partial reflective coating on front surface

AR coating on back surface

Damage Threshold>5J/cm2, 20ns, 20Hz, @1064nm


Nd YAG Output Coupler Mirror 1064nm Partially Reflective Mirror In Laser Cavities 0


Standard Products of Nd:YAG Laser Output Coupler:

Part NumberMaterialDiameter
(mm)		Thickness
(mm)		Transmission
(%)		Wavelength
(nm)		AOI
(°)
LOC2506-T2-1064N-BK725.46.352±110640
LOC2506-T5-1064N-BK725.46.355±210640
LOC2506-T20-1064N-BK725.46.3520±510640
LOC2506-T30-1064N-BK725.46.3530±510640
LOC2506-T40-1064N-BK725.46.3540±510640
LOC2506-T50-1064N-BK725.46.3550±510640
LOC2506-T70-1064N-BK725.46.3570±510640
LOC2506-T80-1064N-BK725.46.3580±410640
LOC2506-T90-1064N-BK725.46.3590±310640
LOC2506-T95-1064N-BK725.46.3595±210640




Coating Graphs of Nd:YAG Laser Output Coupler:



1064nm Output Coupler-T2%

Nd YAG Output Coupler Mirror 1064nm Partially Reflective Mirror In Laser Cavities 1
