Product Name Hypotenuse-coated Right-angle Prism Mirror Feature Externally Reflect
Surface Metallic High Reflective Coating On Hypotenuse, Two Legs Inspection Polished Size 5x5mm~25.4x25.4mm
Advantage Reduce Alignment Time And Increase The Rigidity Of An Optical System. Coating Metallic Aluminum Al, Gold Au Or Silver Ag
High Light

Right Angle Prism Mirror Gold Au

,

Gold Au Thorlabs Right Angle Prism

,

Right Angle Prism Mirror Hypotenuse Coated
Leave a Message
Product Description

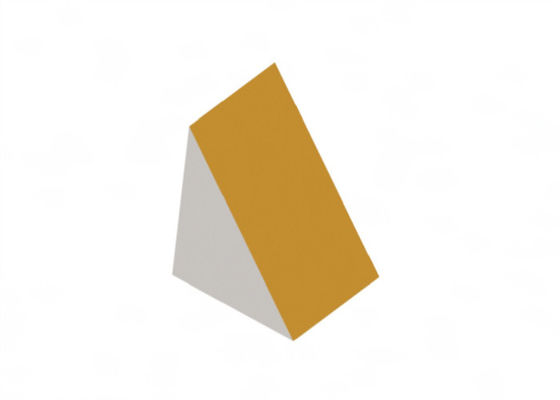

Hypotenuse-Coated Right-Angle Prism Mirrors, Turning Mirrors Ideal For Alignment

Overview:

Star Optic offers Right-angle Prism Mirrors with the reflective metallic coatings deposited on the prism's hypotenuse: coating materials include aluminum Al, gold Au or silver Ag.



These Hypotenuse-coated Right-angle Prism Mirrors are designed to reflect light that is externally incident on the hypotenuse of the prism.The mirrors reduce alignment time and increase the rigidity of an optical system.







General Specifications of Hypotenuse-coated Right-angle Prism Mirror:

Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Surface Quality 60/40
Clear Aperture >90%
Flatness Refer to below list
Coating

Metallic high reflective coating on hypotenuse,

two legs inspection polished



  • Enhanced Aluminum: Ravg>90%@400-700nm
  • Protected Aluminum: Ravg>87%@400-1200nm
  • UV Protected Aluminum: Ravg>80%@250-700nm
  • Protected Silver: Ravg>95%@400-12000nm
  • Enhanced Silver: Ravg>98.5%@700-1100nm
  • Protected Gold: Ravg>98%@2000-12000nm
Damage Threshold >1J/cm2, 20ns, 20Hz, @1064nm



Hypotenuse Coated Right Angle Prism Mirror Thorlabs Gold Au For Alignment 0



Standard Products of Hypotenuse-coated Right-angle Prism Mirror:

Part Number Material AxC
(mm)		 B
(mm)		 Hypo Coating
RAM0505-PAL BK7 5x7.1 5 Protected Aluminum
RAM1010-PAL BK7 10x14.1 10 Protected Aluminum
RAM1212-PAL BK7 12.7x18 12.7 Protected Aluminum
RAM1515-PAL BK7 15x21.2 15 Protected Aluminum
RAM2020-PAL BK7 20x28.3 20 Protected Aluminum
RAM2525-PAL BK7 25.4x35.9 25.4 Protected Aluminum
RAM0505-EAL BK7 5x7.1 5 Enhanced Aluminum
RAM1010-EAL BK7 10x14.1 10 Enhanced Aluminum
RAM1212-EAL BK7 12.7x18 12.7 Enhanced Aluminum
RAM1515-EAL BK7 15x21.2 15 Enhanced Aluminum
RAM2020-EAL BK7 20x28.3 20 Enhanced Aluminum
RAM2525-EAL BK7 25.4x35.9 25.4 Enhanced Aluminum
RAM0505-UVPAL BK7 5x7.1 5 UV Protected Aluminum
RAM1010-UVPAL BK7 10x14.1 10 UV Protected Aluminum
RAM1212-UVPAL BK7 12.7x18 12.7 UV Protected Aluminum
RAM1515-UVPAL BK7 15x21.2 15 UV Protected Aluminum
RAM2020-UVPAL BK7 20x28.3 20 UV Protected Aluminum
RAM2525-UVPAL BK7 25.4x35.9 25.4 UV Protected Aluminum
RAM0505-PAG BK7 5x7.1 5 Protected Silver
RAM1010-PAG BK7 10x14.1 10 Protected Silver
RAM1212-PAG BK7 12.7x18 12.7 Protected Silver
RAM1515-PAG BK7 15x21.2 15 Protected Silver
RAM2020-PAG BK7 20x28.3 20 Protected Silver
RAM2525-PAG BK7 25.4x35.9 25.4 Protected Silver
RAM0505-EAG BK7 5x7.1 5 Enhanced Silver
RAM1010-EAG BK7 10x14.1 10 Enhanced Silver
RAM1212-EAG BK7 12.7x18 12.7 Enhanced Silver
RAM1515-EAG BK7 15x21.2 15 Enhanced Silver
RAM2020-EAG BK7 20x28.3 20 Enhanced Silver
RAM2525-EAG BK7 25.4x35.9 25.4 Enhanced Silver
RAM0505-PAU BK7 5x7.1 5 Protected Gold
RAM1010-PAU BK7 10x14.1 10 Protected Gold
RAM1212-PAU BK7 12.7x18 12.7 Protected Gold
RAM1515-PAU BK7 15x21.2 15 Protected Gold
RAM2020-PAU BK7 20x28.3 20 Protected Gold
RAM2525-PAU BK7 25.4x35.9 25.4 Protected Gold







Coating Graphs of Hypotenuse-coated Right-angle Prism Mirror:



UV Protected Aluminum Coating

Metal Coated Flat Mirror, Metal-coated AOI Insensitive Mirror 0

Ravg>80%@250-700nm



Enhanced Aluminum Coating

Metal Coated Flat Mirror, Metal-coated AOI Insensitive Mirror 1

Ravg>90%@400-700nm



Protected Aluminum Coating

Metal Coated Flat Mirror, Metal-coated AOI Insensitive Mirror 2

Ravg>87%@400-1200nm





Protected Silver Coating

Metal Coated Flat Mirror, Metal-coated AOI Insensitive Mirror 3

Ravg>95%@400-12000nm



Enhanced Silver Coating

Metal Coated Flat Mirror, Metal-coated AOI Insensitive Mirror 4

Ravg>98.5%@700-1100nm



Protected Gold Coating

Metal Coated Flat Mirror, Metal-coated AOI Insensitive Mirror 5

Ravg>98%@2000-12000nm
