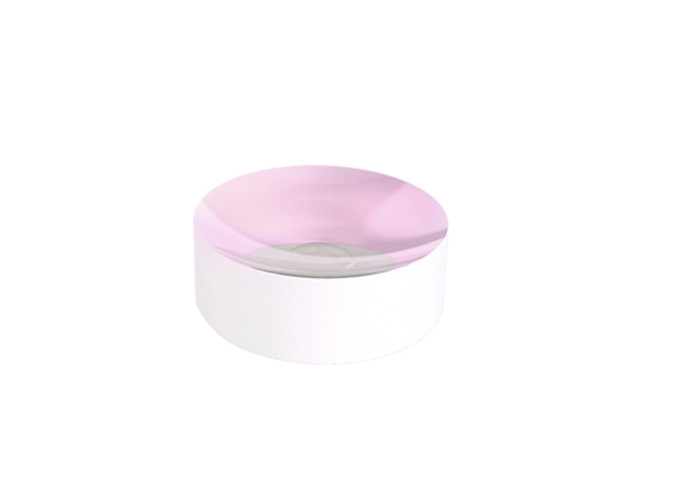

532nm Optical Mirrors 25.4mm Plano Concave Mirror Inspection Polished

Basic Properties
Place of Origin: Wuhan, China
Brand Name: STAR OPTIC
Certification: RoHS, ISO9001
Model Number: MIR-CC
Trading Properties
Minimum Order Quantity: 5pcs
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/Month
Tags

Beam Splitter Mirror

Concave Convex Mirror

Output Coupler Mirror
Product Summary
Dielectric Concave Mirror, High Energy Focusing Mirror For 532nm And 1064nm Overview: Dielectric Concave Mirrors (Dielectirc Focusing Mirrors) are characterized by one concave surface with metallic high reflection coating. The reflective coating allows focusing of a light beam. Most common coating ...

Product Details

Highlight:

532nm Optical Mirrors

,

Optical Mirrors 25.4mm

,

25.4mm Plano Concave Mirror
Product Name: Dielectric Concave Mirror
Shape: Plano Concave
Substrate: N-BK7
Usage: Focusing Light Beam
Radius: 50-1000 And Custom Available
Coating: Dielectric HR Coaing On Curved Surface
Product Description

  Dielectric Concave Mirror, High Energy Focusing Mirror For 532nm And 1064nm

Overview:

Dielectric Concave Mirrors (Dielectirc Focusing Mirrors) are characterized by one concave surface with metallic high reflection coating. The reflective coating allows focusing of a light beam. Most common coating materials include aluminum Al, gold Au or silver Ag.



A requirement for a focusing mirror is when no chromatic aberration is allowed in a broad spectral range. Yet another common use case is tightness optimization of an optical system.

Concave mirrors can be used similarly to focusing lenses. Type of image created by a focusing mirror depends on radius of the concave surface as well as on the distance from an object to the mirror.







General Specifications of Dielectric Concave Mirror:

Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Surface Quality 60/40
Clear Aperture >90%
Flatness <λ/4@632.8nm
Centration <3 arc minutes
Coating

concave surface dielectric HR coating coated,

flat surface ground or inspection polished
Damage Threshold >5J/cm2, 20ns, 20Hz, @1064nm



532nm Optical Mirrors 25.4mm Plano Concave Mirror Inspection Polished 0





Standard Products of Dielectric Concave Mirror:

Part Number Material Diameter
(mm)		 Tc
(mm)		 Radius
(mm)		 Focal
(mm)		 Wavelength
(nm)		 AOI
(°)
MIR25-CC-R-50-532 BK7 25.4 2 -50 25 524-532 0
MIR25-CC-R-100-532 BK7 25.4 2 -100 50 524-532 0
MIR25-CC-R-150-532 BK7 25.4 2 -150 75 524-532 0
MIR25-CC-R-200-532 BK7 25.4 2 -200 100 524-532 0
MIR25-CC-R-250-532 BK7 25.4 2 -250 125 524-532 0
MIR25-CC-R-300-532 BK7 25.4 2 -300 150 524-532 0
MIR25-CC-R-500-532 BK7 25.4 2 -500 250 524-532 0
MIR25-CC-R-1000-532 BK7 25.4 2 -1000 500 524-532 0
MIR50-CC-R-50-532 BK7 50.8 2 -50 25 524-532 0
MIR50-CC-R-100-532 BK7 50.8 2 -100 50 524-532 0
MIR50-CC-R-150-532 BK7 50.8 2 -150 75 524-532 0
MIR50-CC-R-200-532 BK7 50.8 2 -200 100 524-532 0
MIR50-CC-R-250-532 BK7 50.8 2 -250 125 524-532 0
MIR50-CC-R-300-532 BK7 50.8 2 -300 150 524-532 0
MIR50-CC-R-500-532 BK7 50.8 2 -500 250 524-532 0
MIR50-CC-R-1000-532 BK7 50.8 2 -1000 500 524-532 0
MIR25-CC-R-50-1064 BK7 25.4 2 -50 25 1047-1064 0
MIR25-CC-R-100-1064 BK7 25.4 2 -100 50 1047-1064 0
MIR25-CC-R-150-1064 BK7 25.4 2 -150 75 1047-1064 0
MIR25-CC-R-200-1064 BK7 25.4 2 -200 100 1047-1064 0
MIR25-CC-R-250-1064 BK7 25.4 2 -250 125 1047-1064 0
MIR25-CC-R-300-1064 BK7 25.4 2 -300 150 1047-1064 0
MIR25-CC-R-500-1064 BK7 25.4 2 -500 250 1047-1064 0
MIR25-CC-R-1000-1064 BK7 25.4 2 -1000 500 1047-1064 0
MIR50-CC-R-50-1064 BK7 50.8 2 -50 25 1047-1064 0
MIR50-CC-R-100-1064 BK7 50.8 2 -100 50 1047-1064 0
MIR50-CC-R-150-1064 BK7 50.8 2 -150 75 1047-1064 0
MIR50-CC-R-200-1064 BK7 50.8 2 -200 100 1047-1064 0
MIR50-CC-R-250-1064 BK7 50.8 2 -250 125 1047-1064 0
MIR50-CC-R-300-1064 BK7 50.8 2 -300 150 1047-1064 0
MIR50-CC-R-500-1064 BK7 50.8 2 -500 250 1047-1064 0
MIR50-CC-R-1000-1064 BK7 50.8 2 -1000 500 1047-1064 0







Coating Graphs of Dielectric Concave Mirror:



524-532nm Dielectric Concave Mirror

532nm Optical Mirrors 25.4mm Plano Concave Mirror Inspection Polished 1



1047-1064nm Dielectric Concave Mirror

532nm Optical Mirrors 25.4mm Plano Concave Mirror Inspection Polished 2
