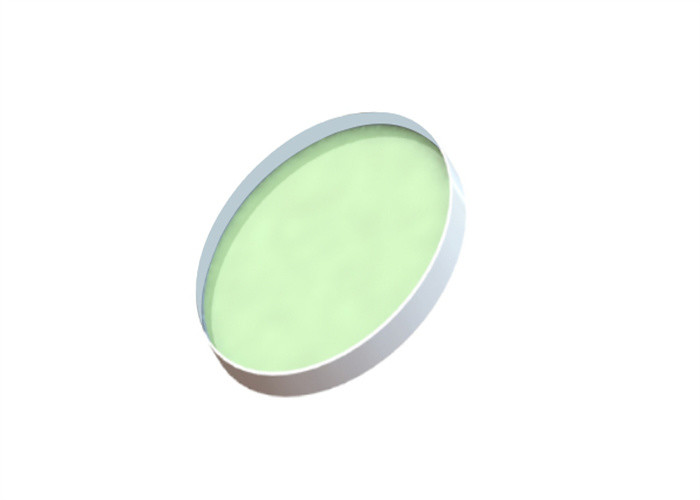

Wide Angle Broadband Dielectric Mirror Broad Spectrum Laser Reflector 20Hz

Place of Origin	Wuhan, China
Brand Name	STAR OPTIC
Certification	RoHS, ISO9001
Model Number	BDM
Minimum Order Quantity	5pcs
Price	Negotiable
Packaging Details	Safe and dust-free packing
Delivery Time	Negotiable
Payment Terms	T/T, Western Union, Paypal
Supply Ability	50000pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Dielectric Broadband Mirror	Material	N-BK7 Or UVFS
Wavelength Range	UV, VIS And IR	Diameter	12.7mm, 25.4mm
Surface Flatness	<λ/10@633nm	Reflctance	Ravg>99.5%
High Light	Wide Angle Broadband Dielectric Mirror , Broadband Dielectric Mirror 20Hz , 20Hz Laser Reflector

Leave a Message

Product Description

Overview:
Dielectric Broadband Mirrors provide an optimized performance at broad wavelength range and wide angle of incidence (AOI). These multilayer coating stacks helps to achieve the highest possible reflectivity at broad spectrum region at normal to 45 degrees incidence. Therefore, they are ideal for beam steering or reflection applications utilizing multiple laser sources.

Coatings are provided by Ion Beam Sputtering (IBS) or Electron beam evaporation with/without Ion assistance coating techniques. High reflectivity greater than 99% dielectric coatings in the range of 0.19 - 20 µm are available. They are significantly better than that of metal coated mirrors, and increases system performance by minimizing energy loss.

General Specifications of Dielectric Broadband Mirror:

Material	BK7 Grade A optical glass, UV grade fused silica
Dimension Tolerance	+0.0/-0.2mm
Thickness Tolerance	±0.2mm
Clear Aperture	>90%
Surface Quality	60/40 sctrach and dig
Flatness	<λ/10@633nm per 25mm
Chamfer	Protected <0.5mmx45deg
Coating	Dielectric HR coating on one surface, Ravg>99.5% for random polarization, rear surface ground or inspection polished
Damage Threshold	>5J/cm², 20ns, 20Hz, @1064nm

Standard Products of Dielectric Broadband Mirror:

Part Number	Material	Diameter (mm)	Thickness (mm)	Wavelength (nm)	AOI (°)
BDM1203-350-400	BK7	12.7	3.0	350-400	0-45
BDM2506-350-400	BK7	25.4	6.4	350-400	0-45
BDM5006-350-400	BK7	50.8	6.4	350-400	0-45
BDM1203-400-750	BK7	12.7	3.0	400-750	0-45
BDM2506-400-750	BK7	25.4	6.4	400-750	0-45
BDM5006-400-750	BK7	50.8	6.4	400-750	0-45
BDM1203-750-1100	BK7	12.7	3.0	750-1100	0-45
BDM2506-750-1100	BK7	25.4	6.4	750-1100	0-45
BDM5006-750-1100	BK7	50.8	6.4	750-1100	0-45
BDM1203-1280-1600	BK7	12.7	3.0	1280-1600	0-45
BDM2506-1280-1600	BK7	25.4	6.4	1280-1600	0-45
BDM5006-1280-1600	BK7	50.8	6.4	1280-1600	0-45

Coating Graphs of Dielectric Broadband Mirror:

350-400nm Dielectric Broadband Mirror AOI0°

Wide Angle Broadband Dielectric Mirror Broad Spectrum Laser Reflector 20Hz 0

350-400nm Dielectric Broadband Mirror AOI45°

400-750nm Broadband Dielectric Mirror AOI0°

400-750nm Dielectric Broadband Mirror AOI45°

Wide Angle Broadband Dielectric Mirror Broad Spectrum Laser Reflector 20Hz 3

750-1100nm Broadband Dielectric Mirror AOI0°

750-1100nm Broadband Dielectric Mirror AOI45°

1280-1600nm Broadband Dielectric Mirror AOI0°

1280-1600nm Broadband Dielectric Mirror AOI45°
