1064nm Optical Polarizer Quartz Wedge Depolarizer Super Broad Wavelength Range
Product Details
1064nm Optical Polarizer
,Wedge Depolarizer 1064nm
,Quartz Wedge Depolarizer

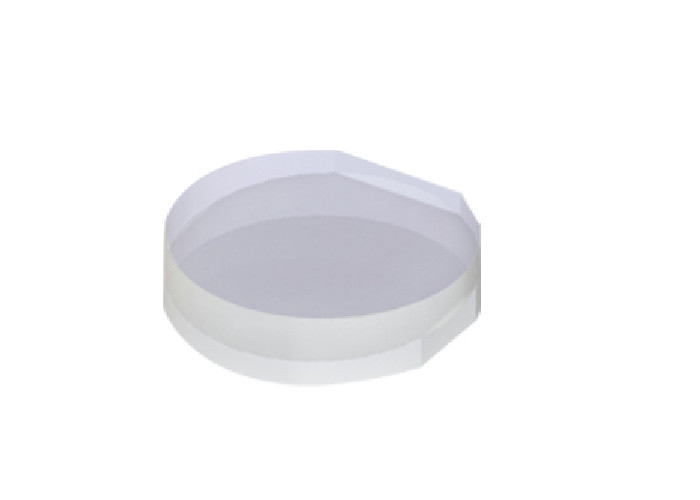

Quartz Wedge Depolarizer, Super Broad Wavelength Range
|
Overview: Quartz Wedge Depolarizer is constructed with two crystal quartz wedges of 3°. Since most wedge depolarizers comprise of one crystal quartz wedge and another fused silica to minimize beam deviation value, it is limited to be used in some precision instrument. Replaced the fused silica by the crystal quartz plates with optical axis along the propagation direction as the main method to reduce beam deviation, Star Optic’s depolarizer can be used in a wide wavelength spectrum with good beam deviation quality as compared to typical depolarizer which has a narrow wavelength range to maintain its beam deviation. These quartz wedge depolarizers are ideal for greater than 6mm diameter Monochromatic Light & Broadband Light and they can better performance when aligning optical axis at 45°. We offer these quarts wedge depolarizers with technique of epoxy cemented and optically contacted.
General Specifications of Quartz Wedge Depolarizer:
Standard Products of Quartz Wedge Depolarizer:
|
-
