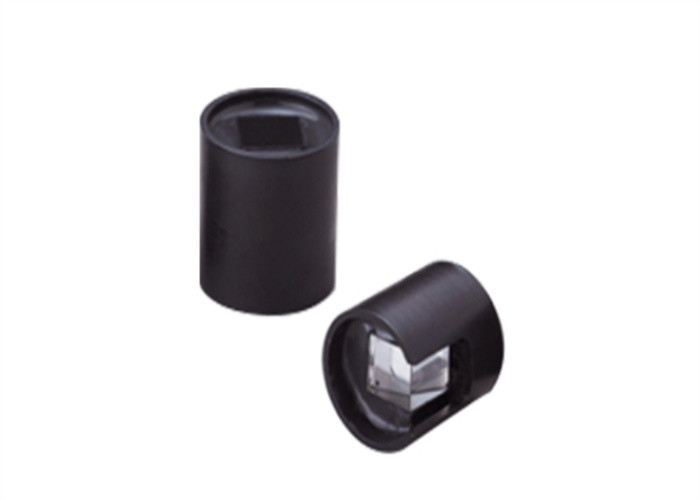

High Transmission Optical Polarizer Air Spaced Brewster Angle Polarizer

Basic Properties
Place of Origin: Wuhan, China
Brand Name: STAR OPTIC
Certification: RoHS, ISO9001
Model Number: BRP
Trading Properties
Minimum Order Quantity: 1pc
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/Month
Tags

Polarizing Beam Splitter

Beam Splitter Cube

Polarizing Plate Beamsplitter
Product Summary
Brewster Angle Polarizer, Air-Spaced High Power Use, High Transmission Overview: The Brewster Angle Polarizer is made of two birefrigent crystal material prisms which are assembled with an air space. It is designed such that for the transmitted extraordinary -p polarization, each of the four faces ...

Product Details

Highlight:

High Transmission Optical Polarizer

,

Air Spaced Brewster Angle Polarizer

,

Optical Polarizer Air Spaced
Product Name: Brewster Angle Polarizer
Sturcture: Air Spaced
Material: Birefrigent Crystas
Feature: Zero Transmission Loss Of P-polarization
Advantage: He Rejected Beam Is Available For Beam Splitting/combining
Coating: No Need For Coating Due To All Faces Of Brewster Angle Of Incidence
Product Description

Brewster Angle Polarizer, Air-Spaced High Power Use, High Transmission

Overview:

The Brewster Angle Polarizer is made of two birefrigent crystal material prisms which are assembled with an air space. It is designed such that for the transmitted extraordinary -p polarization, each of the four faces are at Brewster's angle (computed at about 830nm) which makes transmission loss of -p polarization as practically zero, therefore, no anit-reflective coatings needed. In the meantime, the rejected beam is available for beam splitting/combining applications or safe dumping.

Due to non normal angle of incidence, the transmitted beam suffers a beam displacement which is approximately 6 mm and 11 mm for 5 mm and 10 mm clear aperture Brewster angle polarizer respectively. In its mount, the Brewster angle polarizer is mounted in such a way that the incident beam normal to one of the two aperture holes in the mount is automatically incident at Brewster's angle at the entrance face of the polarizer.




General Specifications of Brewster Angle Polarizer:

Material Calcite, YVO4
Wavelength Range Calcite: 350-2300nm; YVO4: 500-4000nm
Extinction Ratio <5x10-5
Surface Quality 20/10 scratch and dig
Wavefront Distortion <λ/4@632.8nm
Beam Deviation <3 arc minutes
Damage Threshold >1000MW/cm2
Coating No coating, Brewster Angle of Incidence, Tp>98%
Mount Black Anodized Aluminium



High Transmission Optical Polarizer Air Spaced Brewster Angle Polarizer 0

Standard Products of Brewster Angle Polarizer:

Part Number Material

Wavelength

(nm)

CA

(mm)

Mount

(mm)
BRP-C-08 Calcite 350-2300 5.0 φ15.0X18.0
BRP-C-10 Calcite 350-2300 10.0 φ25.4X37.0
BRP-Y-08 YVO4 500-4000 5.0 φ18.0X21.0
BRP-Y-10 YVO4 500-4000 10.0 φ32.0X40.0
