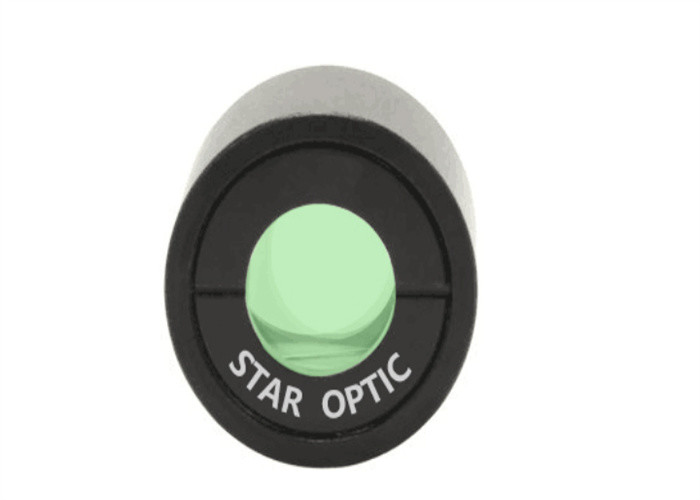

Right Angled Calcite Glan Thompson Polarizer Prism 500nm Wide Field Of View
Basic Properties
Place of Origin:
Wuhan, China
Brand Name:
STAR OPTIC
Certification:
RoHS, ISO9001
Model Number:
GMP
Trading Properties
Minimum Order Quantity:
1pc
Price:
Negotiable
Payment Terms:
T/T, Western Union, Paypal
Supply Ability:
50000pcs/Month
Product Summary
Glan Thompson Polarizer, Calcite, Wide Field of View Overview: A Glan–Thompson prism consists of two right-angled calcite prisms that are cemented together by their long faces. The optical axes of the calcite crystals are parallel and aligned perpendicular to the plane of reflection. Birefringence ...
Product Details
Highlight:
Glan Thompson Polarizer 500nm
,500nm Glan Thompson Prism
,Right Angled Calcite Glan Thompson Polarizer
Product Name:
Glan Thompson Polarizer
Constructure:
Two Right-angled Calcite Prisms Cemented Together
Feature:
Reflect P-polarized Ordinary Ray, Transmit S-polarized Extraordinary Ray
Material:
Calcite
Wavelength:
400-2300nm
Extinction Ratio:
<5x10-5
Product Description
Glan Thompson Polarizer, Calcite, Wide Field of View
|
Overview: A Glan–Thompson prism consists of two right-angled calcite prisms that are cemented together by their long faces. The optical axes of the calcite crystals are parallel and aligned perpendicular to the plane of reflection. Birefringence splits light entering the prism into two rays, experiencing different refractive indices; the p-polarized ordinary ray is totally internally reflected from the calcite–cement interface, leaving the s-polarized extraordinary ray to be transmitted. The prism can therefore be used as a polarizing beam splitter.
General Specifications of Glan-Thompson Prism:
Standard Products of Glan-Thompson Prism:
|
