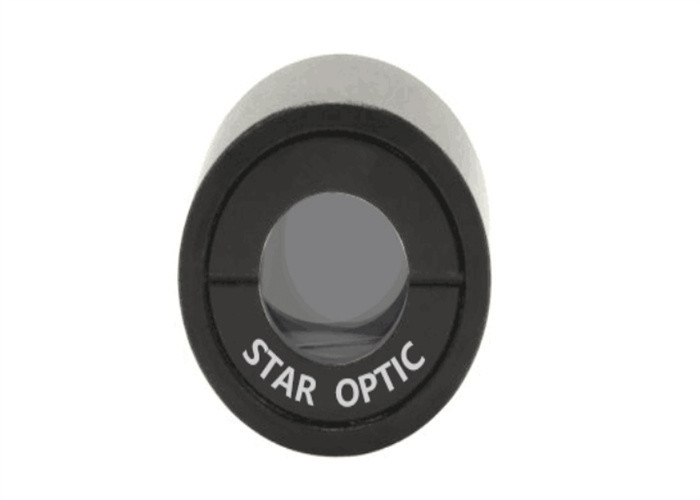

Calcite YVO4 Optical Polarizer Glan Taylor 3000nm For VIS-IR
Product Details
YVO4 Optical Polarizer
,Glan Taylor Polarizer YVO4
,3000nm Glan Taylor Polarizer
Glan Taylor Polarizer, a-BBO, Calcite and YVO4, Air-spaced Medium power for VIS-IR
|
Overview: A Glan-Taylor prism reflects s-polarized light at an internal air-gap, transmitting only the p-polarized component. The optical axes are vertical in the plane of the diagram.
A Glan–Taylor prism is a type of prism which is used as a polarizer or polarizing beam splitter. It is one of the most common types of modern polarizing prism.
The prism is made of two right-angled prisms of calcite (350-2300nm) or a-BBO (220-3000nm) or YVO4 (500-4000nm) on their long faces with an air gap. The optical axes of the calcite crystals are aligned parallel to the plane of reflection. Total internal reflection of s-polarized light at the air gap ensures that only p-polarized light is transmitted by the device. Because the angle of incidence at the gap can be reasonably close to Brewster's angle, unwanted reflection of p-polarized light is reduced, giving the Glan–Taylor prism better transmission. Note that while the transmitted beam is completely polarized, the reflected beam is not. The sides of the crystal can be polished to allow the reflected beam to exit or can be blackened to absorb it. The latter reduces unwanted Fresnel reflection of the rejected beam.
General Specifications of Glay-Taylor Polarizer:
Standard Products of Glay-Taylor Polarizer:
|
-
