λ/2 Half Quarte Wave Plate 266nm

  • λ/2 Half Quarte Wave Plate 266nm
Place of Origin Wuhan, China
Brand Name STAR OPTIC
Certification RoHS, ISO9001
Model Number WPM
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Safe and dust-free packing
Delivery Time Negotiable
Payment Terms T/T, Western Union, Paypal
Supply Ability 50000pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Multiple Order λ/2 Half Wave Plate Constructure Single Plate
Material Crystal Quartz Coating High Power AR Coating
Damage Threshold >10J/cm2, 20ns, 20Hz @1064nm Cosmetic 20/10 Scratch And Dig
High Light

λ/2 Half Wave Plate

,

Quarter Wave Plate 266nm

,

266nm Half Wave Plate
Leave a Message
Product Description

Multiple Order λ/2 Half Wave Plate, High Damage Threshold, Low Cost

Overview:

Multiple Order Wave plate means the fact that the retardance of a light path will undergo a certain number of full wavelength shifts in addition to the fractional design retardance. Half Wave Plates are typically used to rotate the polarization of light.

The net effect of multi order waveplate at the design wavelength is basically the same as zero order waveplate. But the optical bandwidth is limited. Also, the retardance has a higher temperature sensitivity. However, compared to zero order waveplates, multi-order wave plates are a more economical solution for many applications where increased sensitivities are not an issue.





Main Features of Multi Order Wave Plate:

  • Good wavefront distortion and parallelism
  • High damage threshod
  • High precise phase retardation
  • Large size available and fast delivery
  • Economical solution





General Specifications Of Multi Order λ/2 Half Wave Plate:

Material Crystal Quartz
Dimension Tolerance +0.0/-0.2mm
Surface Quality 20/10 scratch and dig
Clear Aperture >90% central area
Wavefront Distortion <λ/8@632.8nm
Parallelism <1 arc second
Retardation Tolerance <λ/100
Standard Wave

half-wave(λ/2)
Coating Both sides AR coated, R<0.25% per face @ central wavelength
Damage Threshold >10J/cm2, 20ns, 20Hz @1064nm







Standard Products Of Multi Order λ/2 Half Wave Plate:

Part Number

Diameter

(mm)

Retardation

(λ)

Wavelength

(nm)

Clear Aperture

(mm)

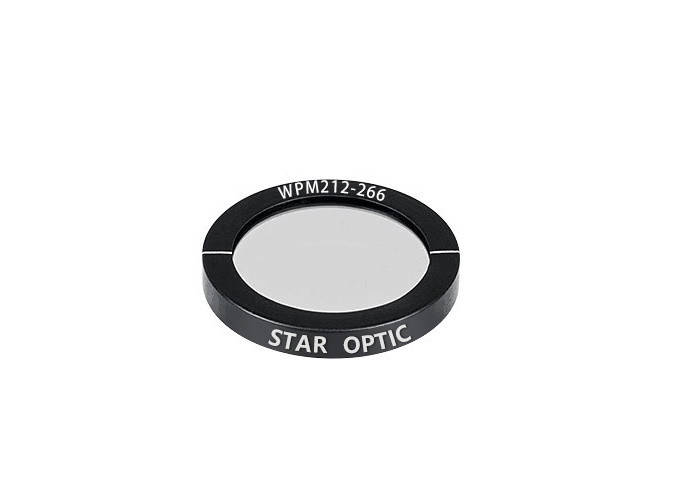

WPM212-266 12.7 λ/2 266 11.5
WPM225-266 25.4 λ/2 266 22.9
WPM212-355 12.7 λ/2 355 11.5
WPM225-355 25.4 λ/2 355 22.9
WPM212-405 12.7 λ/2 405 11.5
WPM225-405 25.4 λ/2 405 22.9
WPM212-488 12.7 λ/2 488 11.5
WPM225-488 25.4 λ/2 488 22.9
WPM212-532 12.7 λ/2 532 11.5
WPM225-532 25.4 λ/2 532 22.9
WPM212-633 12.7 λ/2 633 11.5
WPM225-633 25.4 λ/2 633 22.9
WPM212-780 12.7 λ/2 780 11.5
WPM225-780 25.4 λ/2 780 22.9
WPM212-800 12.7 λ/2 800 11.5
WPM225-800 25.4 λ/2 800 22.9
WPM212-980 12.7 λ/2 980 11.5
WPM225-980 25.4 λ/2 980 22.9
WPM212-1030 12.7 λ/2 1030 11.5
WPM225-1030 25.4 λ/2 1030 22.9
WPM212-1064 12.7 λ/2 1064 11.5
WPM225-1064 25.4 λ/2 1064 22.9
WPM212-1550 12.7 λ/2 1550 11.5
WPM225-1550 25.4 λ/2 1550 22.9







Retardance Graph of Multi Order Wave Plate:

266nm Multi Order Waveplate

λ/2 Half Quarte Wave Plate 266nm 0

355nm Multi Order Waveplate

λ/2 Half Quarte Wave Plate 266nm 1

405nm Multi Order Waveplate

λ/2 Half Quarte Wave Plate 266nm 2

488nm Multi Order Waveplate

λ/2 Half Quarte Wave Plate 266nm 3

532nm Multi Order Waveplate

λ/2 Half Quarte Wave Plate 266nm 4

633nm Multi Order Waveplate

λ/2 Half Quarte Wave Plate 266nm 5

780nm Multi Order Waveplate

λ/2 Half Quarte Wave Plate 266nm 6

800nm Multi Order Waveplate

λ/2 Half Quarte Wave Plate 266nm 7

980nm Multi Order Waveplate

λ/2 Half Quarte Wave Plate 266nm 8

1030nm Multi Order Waveplate

λ/2 Half Quarte Wave Plate 266nm 9

1064nm Multi Order Waveplate

λ/2 Half Quarte Wave Plate 266nm 10

1550nm Multi Order Waveplate

λ/2 Half Quarte Wave Plate 266nm 11
