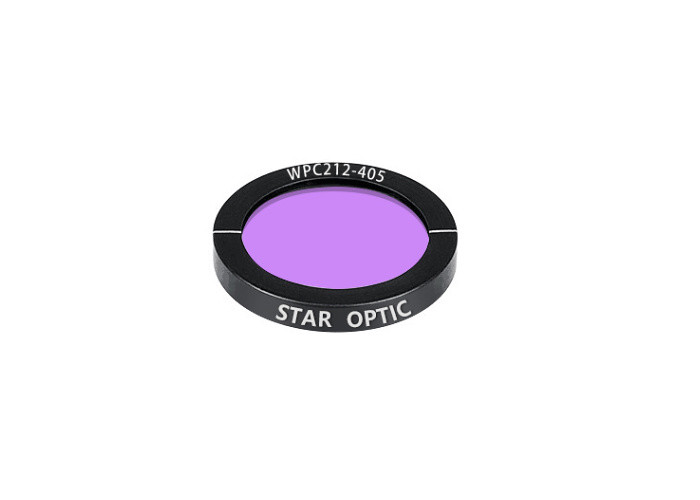

20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm

  • 20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm
Place of Origin Wuhan, China
Brand Name STAR OPTIC
Certification RoHS, ISO9001
Model Number WPC
Minimum Order Quantity 5pcs
Price Negotiable
Packaging Details Safe and dust-free packing
Delivery Time Negotiable
Payment Terms T/T, Western Union, Paypal
Supply Ability 50000pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Cemented Zero Order λ/2 Half Wave Plate Type Two Plates Are Cemented By UV Epoxy
Retardance <λ/300 Order Zero Order
Feature Low Sensitivity To Temperature Changes
High Light

20ns Optical Waveplate

,

Optical Waveplate Cemented

,

Half Wave Plate Retardation 20ns
Leave a Message
Product Description

Cemented Zero Order λ/2 Half Wave Plate, High Retardance

Overview:

Cemented zero order wave plate is constructed by two quartz plates with their fast axis crossed. The two plates are cemented by UV epoxy. The difference in thickness between the two plates determines the retardance. Zero order waveplate features better performance than multiple order waveplate, as zero order waveplate has lower sensitivity to temperature and wavelength changes.





Main Features of Cemented Zero Order Wave Plate:

  • Low sensitivity to temperature changes
  • Wide wavelength bandwidth
  • Both sides AR coated
  • Large sizes available





General Specifications of Cemented Zero Order λ/2 Half Wave Plate:

Material Crystalline Quartz
Dimension Tolerance +0.0/-0.2mm
Surface Quality 20/10 scratch and dig
Clear Aperture >90% central area
Wavefront Distortion <λ/8@632.8nm
Parallelism <1 arc seconds
Retardation Tolerance <λ/300
Standard Wave

half-wave(λ/2)
Coating Both sides AR coated, R<0.25% per face @ central wavelength
Damage Threshold >500mJ/cm2, 20ns, 20Hz @1064nm







Standard Products of Cemented Zero Order λ/2 Half Wave Plate:

Part Number Type Diameter (mm)

Retardation

(λ)

Wavelength

(nm)

 Clear Aperture (mm)
WPC212-405 Cemented 12.7 λ/2 405 11.5
WPC225-405 Cemented 25.4 λ/2 405 22.9
WPC238-405 Cemented 38.1 λ/2 405 35
WPC212-633 Cemented 12.7 λ/2 633 11.5
WPC225-633 Cemented 25.4 λ/2 633 22.9
WPC238-633 Cemented 38.1 λ/2 633 35
WPC212-780 Cemented 12.7 λ/2 780 11.5
WPC225-780 Cemented 25.4 λ/2 780 22.9
WPC238-780 Cemented 38.1 λ/2 780 35
WPC212-795 Cemented 12.7 λ/2 795 11.5
WPC225-795 Cemented 25.4 λ/2 795 22.9
WPC238-795 Cemented 38.1 λ/2 795 35
WPC212-852 Cemented 12.7 λ/2 852 11.5
WPC225-852 Cemented 25.4 λ/2 852 22.9
WPC238-852 Cemented 38.1 λ/2 852 35
WPC212-894 Cemented 12.7 λ/2 894 11.5
WPC225-894 Cemented 25.4 λ/2 894 22.9
WPC238-894 Cemented 38.1 λ/2 894 35
WPC212-1310 Cemented 12.7 λ/2 1310 11.5
WPC225-1310 Cemented 25.4 λ/2 1310 22.9
WPC238-1310 Cemented 38.1 λ/2 1310 35
WPC212-1550 Cemented 12.7 λ/2 1550 11.5
WPC225-1550 Cemented 25.4 λ/2 1550 22.9
WPC238-1550 Cemented 38.1 λ/2 1550 35







Retardance Graph of Cemented Zero Order Wave Plate:



405nm Cemented Zero Order Waveplate

20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm 0

633nm Cemented Zero Order Waveplate

20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm 1

780nm Cemented Zero Order Waveplate

20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm 2

795nm Cemented Zero Order Waveplate

20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm 3

852nm Cemented Zero Order Waveplate

20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm 4

894nm Cemented Zero Order Waveplate

20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm 5

1310nm Cemented Zero Order Waveplate

20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm 6

1550nm Cemented Zero Order Waveplate

20ns Optical Waveplate Cemented Half Wave Plate Retardation 1310nm 7
