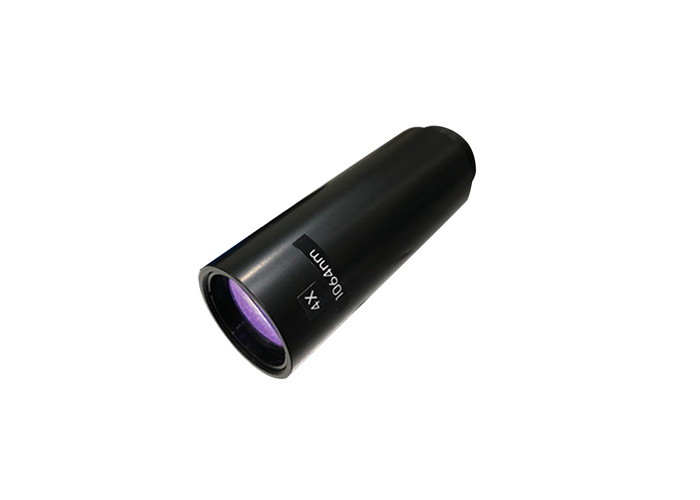

1064nm Optical Glass Lenses High Power Magnification Laser Beam Expander

Basic Properties
Place of Origin: Wuhan, China
Brand Name: STAR OPTIC
Certification: RoHS, ISO9001
Model Number: LBE
Trading Properties
Minimum Order Quantity: 5pcs
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/Month
Tags

Optical Beam Expander

Sapphire Ball Lens

Optical Contact Lenses
Product Summary
1064nm Laser Beam Expander, High Power Magnification Beam Expanders Overview: Laser Beam Expander is used to compress the divergence angle of the beam by expanding the diameter of the laser beam, so it is widely used in laser ranging system or laser focus system. The beam through a laser beam ...

Product Details

Highlight:

1064nm Optical Glass Lenses

,

Laser Beam Expander 1064nm
Product Name: Laser Beam Expander
Wavelength: 1064nm
Magnification: 2x, 3x, 4x, 5x, 10x, 20x
Structure: Air-spaced
Applications: Laser Ranging System Or Laser Focus System
Coating: Narrowband Or Wideband AR Coatings
Product Description

1064nm Laser Beam Expander, High Power Magnification Beam Expanders

Overview:

Laser Beam Expander is used to compress the divergence angle of the beam by expanding the diameter of the laser beam, so it is widely used in laser ranging system or laser focus system. The beam through a laser beam expander features a smaller divergence angle, which can achieve the ideal effect in long distance measurement, and also can get smaller and higher energy beam spot in the laser processing applications.



Star Optic offers Beam Expanders can expand or reduce the diameter of a collimated beam by a factor of 2, 3, 5, 10, or 20. These Galilean beam expanders use a low-aberration, air-spaced design optimized to provide a wavefront error of less than λ/4 (i.e., diffraction-limited performance) and minimize the impact on the M2 value of the expanded beam. An expanded beam can be focused to a narrow diffraction-limited waist, which can be necessary for use with optics or instruments that have narrow input apertures



These fixed-magnification laser beam expanders are offered with optics that have either narrowband or wideband AR coatings.







General Specifications of 1064nm Laser Beam Expander:

Material N-BK7 or UV Fused Silica
Mount Material Black Anodized Aluminum
Transmitted Wavefront Distortion λ/4 @632.8nm (RMS)
Surface Quality 60/40 scratch-Dig
Mount Thread M22x0.75mm
Coating

Multi Layer AR Coating

Total Transmission >98%@Design Wavelength
Damage Threshold

>5J/cm2, 20ns, 20Hz, @1064nm







Standard Products Of 1064nm Laser Beam Expander:

PN. Magnification

Wavelength

(nm)

Max Input Aperture

(mm)

Max Eixt Aperture

(mm)

Diameter

(mm)

Length

(mm)

 Mount Thread
LBE-2X-1064 2 1064 10.4 21.6 27 39.7 M22×0.75
LBE-3X-1064 3 1064 10.4 21.6 27 68.5 M22×0.75
LBE-4X-1064 4 1064 10.4 21.6 27 76 M22×0.75
LBE-5X-1064 5 1064 10.4 21.6 27 71.8 M22×0.75
LBE-6X-1064 6 1064 6 21.6 27 74 M22×0.75
LBE-8X-1064 8 1064 6 21.6 27 68 M22×0.75
LBE-10X-1064 10 1064 6 21.6 27 71.5 M22×0.75
LBE-12X-1064 12 1064 6 21.6 27 77.7 M22×0.75
LBE-15X-1064 15 1064 6 21.6 27 74 M22×0.75
LBE-20X-1064 20 1064 6 21.6 27 83 M22×0.75
LBE-22X-1064 22 1064 6 21.6 27 92.3 M22×0.75
