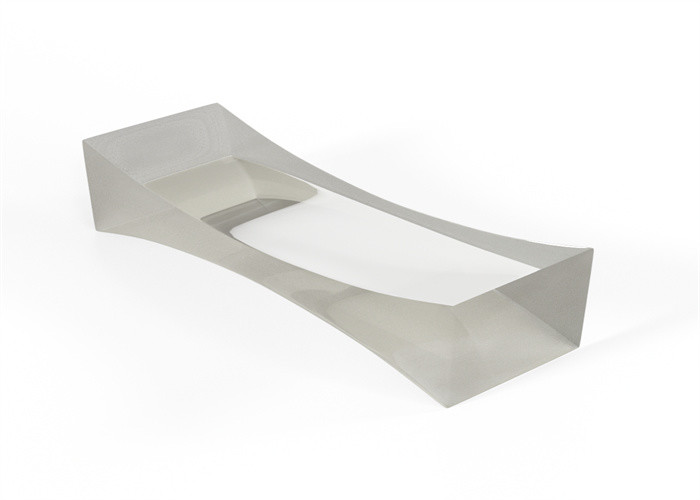

UV Fused Silica Optical Cylinder Lens 20mm Single Vision Lenses

Basic Properties
Place of Origin: Wuhan, China
Brand Name: STAR OPTIC
Certification: RoHS, ISO9001
Model Number: BCYV
Trading Properties
Minimum Order Quantity: 5pcs
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/Month
Tags

Cylindrical Spherical Lens

Cylinder Laser Lenses

Double Concave Lens
Product Summary
Overview: The Biconcave (Double-concave) Cylindrical Lens is generally used to utilized to enlarge light in single dimension or change the aspect ratio of the image. The double concave cylindrical lens can separate input collimated light away from a line. They are best for one-dimensional compressio...

Product Details

Highlight:

Optical Cylinder Lens 20mm

,

20mm Single Vision Lenses

,

UV Fused Silica Optical Cylinder Lens
Product Name: Biconcave (Double-concave) Cylindrical Lens
Shape: Rectangular
Applications: Laser Line Generation
Function: One-dimensional Beam Shaping
Surface Finish: N<3(0.5)@632.8nm
Coating: AR Coatings For UV. VIS And IR
Product Description



Overview:

The Biconcave (Double-concave) Cylindrical Lens is generally used to utilized to enlarge light in single dimension or change the aspect ratio of the image. The double concave cylindrical lens can separate input collimated light away from a line. They are best for one-dimensional compression of images, laser line generation and anamorphic beam shaping.







General Specifications Of Biconcave (Double-concave) Cylindrical Lens:

Material UV Fused Silica UV Fused Silica Optical Cylinder Lens 20mm Single Vision Lenses 0
Design Wavelength 632.8nm
Surface Flatness N<3(0.5)@632.8nm
Surface Quality 60/40 scratch-Dig
Diameter Tolerance +0/-0.2mm
Thickness Tolerance ±0.2mm
Centration <3 arc minutes
Focal Length Tolerance ±2%
Clear Aperture >90%
Chamfer Protective<0.5mmx45°









Standard Products of Biconcave (Double-concave) Cylindrical Lens:

Part No. Material Y
(mm)		 X
(mm)		 F
(mm)		 R1
(mm)		 R2
(mm)		 Tc
(mm)		 Te
(mm)
BCYV1010F-20-FS UVFS 10 10 -20 -18.59 18.59 2 3.4
BCYV1020F-20-FS UVFS 10 20 -20 -18.59 18.59 2 3.4
BCYV1010F-25-FS UVFS 10 10 -30 -27.73 27.73 2 2.9
BCYV1020F-25-FS UVFS 10 20 -30 -27.73 27.73 2 2.9
BCYV2020F-50-FS UVFS 20 20 -50 -46.17 46.17 3 5.2
BCYV2020F-75-FS UVFS 20 20 -75 -69.02 69.02 3 4.5
BCYV2020F-100-FS UVFS 20 20 -100 -91.87 91.87 3 4.1
BCYV2020F-150-FS UVFS 20 20 -150 -137.57 137.57 3 3.7
BCYV2020F-200-FS UVFS 20 20 -200 -183.28 183.28 3 3.5
BCYV2020F-250-FS UVFS 20 20 -250 -228.98 228.98 3 3.4
BCYV2020F-300-FS UVFS 20 20 -300 -274.68 274.68 3 3.4
BCYV2020F-500-FS UVFS 20 20 -500 -457.49 457.49 3 3.2
BCYV2020F-1000-FS UVFS 20 20 -1000 -914.5 914.5 3 3.1







Coating Options of Biconcave (Double-concave) Cylindrical Lens:

Normally our standard Biconcave (Double concave) cylindrical lenses are uncoated. We offer the following four typical antireflective coatings to reduce the reflection light from both surfaces. Choose one of them accordingly apply to your application or discuss with us for your special wavelgnth range.



Single Layer MgF2 Coating Multi-layer Anti-Reflective Coating
UV Fused Silica Optical Cylinder Lens 20mm Single Vision Lenses 1 UV Fused Silica Optical Cylinder Lens 20mm Single Vision Lenses 2



Boradband Anti-Reflective Coating



Dual Wavelength Anti-Reflective Coating
UV Fused Silica Optical Cylinder Lens 20mm Single Vision Lenses 3 UV Fused Silica Optical Cylinder Lens 20mm Single Vision Lenses 4







Custom Your Own Lens:

To Maximize and improve the possibility of transforming the design to production and save time, welcome to consult and discuss with us such as material availability, processing difficulty and cost-efficiency.



Zemax Deisgn

UV Fused Silica Optical Cylinder Lens 20mm Single Vision Lenses 5

Zemax Deisgn

UV Fused Silica Optical Cylinder Lens 20mm Single Vision Lenses 6



Solidworks Design

UV Fused Silica Optical Cylinder Lens 20mm Single Vision Lenses 7



Thin Film Coating Design

UV Fused Silica Optical Cylinder Lens 20mm Single Vision Lenses 8
