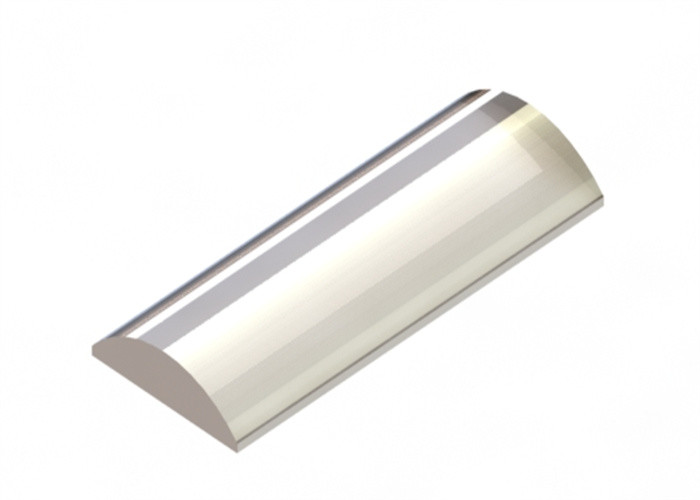

N-BK7 Optical Cylinder Lens Convex Cylinder Laser Lenses Rectangular

Basic Properties
Place of Origin: Wuhan, China
Brand Name: STAR OPTIC
Certification: RoHS, ISO9001
Model Number: CYX
Trading Properties
Minimum Order Quantity: 5pcs
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/Month
Tags

Cylindrical Spherical Lens

Cylinder Laser Lenses

Double Concave Lens
Product Summary
Plano Convex Cylindrical Lens, Rectangular, N-BK7 Overview: The Plano Convex Cylindrical Lens is also identified as positive cylindrical lens. They are ideal for applications requiring magnification in one dimension. While spherical lenses act symmetrically in two dimensions on an incident ray, ...

Product Details

Highlight:

N-BK7 Optical Cylinder Lens

,

Optical Cylinder Lens Convex

,

Cylinder Laser Lenses N-BK7
Product Name: Plano Convex Cylindrical Lens
Shape: Rectangular
Raw Material: Optical Glass
Feature: One Dimentional Beam Shaping
Design Wavelength: 632.8nm
Coating: Uncoated, AR Coating Available
Product Description

Plano Convex Cylindrical Lens, Rectangular, N-BK7

Overview:

The Plano Convex Cylindrical Lens is also identified as positive cylindrical lens. They are ideal for applications requiring magnification in one dimension. While spherical lenses act symmetrically in two dimensions on an incident ray, cylindrical lenses act in the same manner but only in one dimension. A typical application is to use a pair of cylindrical lenses to provide anamorphic shaping of a beam. A pair of positive cylindrical lenses can be used to collimate and circularize the output of a laser diode. Another application possibility would be to use a single lens to focus a diverging beam onto a detector array. To minimize the introduction of spherical aberrations, collimated light should be incident on the curved surface when focusing it to a line, and light from a line source should be incident on the plano surface when collimating.



N-BK7 Optical Cylinder Lens Convex Cylinder Laser Lenses Rectangular 0







General Specifications of Plano Convex Cylindrical Lens:

Material N-BK7, UV FS, N-SF11, CaF2, Si, Ge, ZnSe, Sapphire N-BK7 Optical Cylinder Lens Convex Cylinder Laser Lenses Rectangular 1
Design Wavelength 632.8nm
Surface Flatness N<3(0.5)@632.8nm
Surface Quality 60/40 scratch-Dig
Diameter Tolerance +0/-0.2mm
Thickness Tolerance ±0.2mm
Centration <3 arc minutes
Focal Length Tolerance ±2%
Clear Aperture >90%
Chamfer Protective<0.5mmx45°







Standard Products of Plano Convex Cylindrical Lens:

Part No. Material

H

(mm)

L

(mm)

F

(mm)

R

(mm)

Tc

(mm)

Te

(mm)
CYX1010F12 N-BK7 10 10 12.7 6.54 4.3 2
CYX1020F12 N-BK7 10 20 12.7 6.54 4.3 2
CYX1010F20 N-BK7 10 10 20 10.29 3.3 2
CYX1020F20 N-BK7 10 20 20 10.29 3.3 2
CYX1010F25 N-BK7 10 10 25 12.87 3.0 2
CYX1020F25 N-BK7 10 20 25 12.87 3.0 2
CYX1010F30 N-BK7 10 10 30 15.4 2.6 2
CYX2020F30 N-BK7 20 20 30 15.5 5.7 2
CYX2020F50 N-BK7 20 20 50 25.73 4.0 2
CYX2020F75 N-BK7 20 20 75 38.6 3.3 2
CYX2020F100 N-BK7 20 20 100 51.47 4.0 3
CYX2020F150 N-BK7 20 20 150 77.2 3.7 3
CYX2020F200 N-BK7 20 20 200 102.93 3.5 3
CYX2020F250 N-BK7 20 20 250 128.67 3.4 3
CYX2020F300 N-BK7 20 20 300 154.4 3.3 3
CYX2020F500 N-BK7 20 20 500 257.33 3.2 3
CYX2020F1000 N-BK7 20 20 1000 514.66 3.1 3







Coating Options of Plano Convex Cylindrical Lens:

Star Optic's above standard plano convex cylindrical lenses are uncoated. In order to reduce the amount of light reflected from each surface of the lens, antireflection coatings including singer layer MgF2, multi-layer AR coating, Broadband multi-layer AR coating and Dual wavelength AR coating are also available.



Single Layer MgF2 Coating Multi-layer Anti-Reflective Coating
N-BK7 Optical Cylinder Lens Convex Cylinder Laser Lenses Rectangular 2 N-BK7 Optical Cylinder Lens Convex Cylinder Laser Lenses Rectangular 3



Boradband Anti-Reflective Coating



Dual Wavelength  Anti-Reflective Coating
N-BK7 Optical Cylinder Lens Convex Cylinder Laser Lenses Rectangular 4 N-BK7 Optical Cylinder Lens Convex Cylinder Laser Lenses Rectangular 5







Custom your own lens:

You have your full design freedom, and we are able to work with complex designs to get you exactly what you need including optical design,  mechanical design and optical coating design.



Zemax Deisgn

N-BK7 Optical Cylinder Lens Convex Cylinder Laser Lenses Rectangular 6

Zemax Deisgn

N-BK7 Optical Cylinder Lens Convex Cylinder Laser Lenses Rectangular 7



Solidworks Design

N-BK7 Optical Cylinder Lens Convex Cylinder Laser Lenses Rectangular 8



Thin Film Coating Design

N-BK7 Optical Cylinder Lens Convex Cylinder Laser Lenses Rectangular 9
