Metallic Dielectric Hybrid Coating Broadband 400-700nm Beamsplitter Coating Non Polarizing
Basic Properties
Place of Origin:
Wuhan, China
Brand Name:
STAR OPTIC
Certification:
RoHS, ISO9001
Model Number:
NPB
Trading Properties
Minimum Order Quantity:
1pc
Price:
Negotiable
Payment Terms:
T/T, Western Union, Paypal
Supply Ability:
50000pcs/Month
Product Summary
Cube Non-Polarizing Beamsplitter Coating, Low polarization dependence Thin Film Optical Coating Overview: Non-polarizing cube beamsplitter coating basically is a matellic-dielectric hybrid thin film optical coating both transmits and relfects incoming beams at 45%, allows the transmission and ...
Product Details
Highlight:
Metallic Dielectric Hybrid Coating
,700nm Beamsplitter Coating
,Beamsplitter Coating Non Polarizing
Product Name:
Broadband Non-Polarizing Beamsplitter Cube Coating
Feature:
LLow Polarization Dependence Of The Incident Light
Polarization:
|Tp-Ts| < 6%
Absorption:
<10%
T/R:
45:45
Power:
>100mJ/cm2, 20ns, 20Hz, @1064nm
Product Description
Cube Non-Polarizing Beamsplitter Coating, Low polarization dependence Thin Film Optical Coating
|
Overview:
Non-polarizing cube beamsplitter coating basically is a matellic-dielectric hybrid thin film optical coating both transmits and relfects incoming beams at 45%, allows the transmission and reflection of S and P polarization states to be within 6% of each other. It is less sensitive to changes in angle of incidence and has moderate absorption but minimal polarization sensitivity.
Main Features:

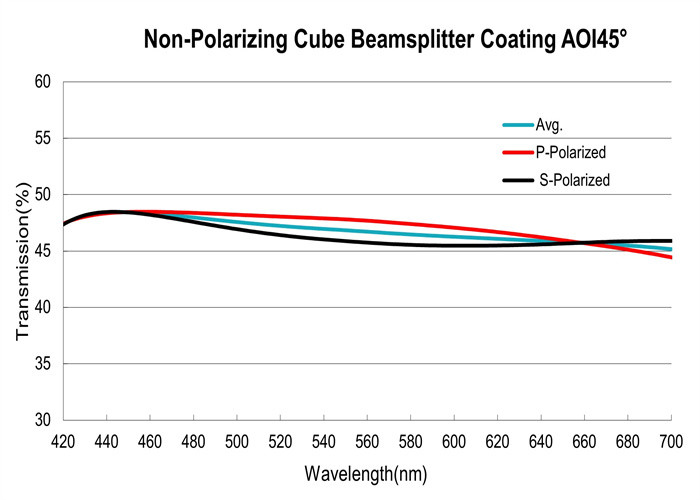

Broadband 400-700nm Non-Polarizing Beamsplitting Coating Graphs:
|
||
