Multi Layer AR Thin Film Optical Coating Anti-Reflective Coating
Product Details
Multi Layer Thin Film Optical Coating
,Multilayer Anti Reflection Coating
,AR Thin Film Optical Coating
Anti-reflective Coating, Multi Layer Thin Film Optical Coating
|
Overview: Anti-reflective coatings are used on the surfaces of the substrates to reduce the amount of light reflected from each surface and improves transmission, which is important in low-light applications, and prevents the undesirable effects like ghost images particularly associated with multiple reflections.
Normally, the more layers in the anti-reflective coating, the more reflections are neutralized. And depending on the design, each anti-reflective coated optic will reflect a certain color. Usually, it does not affect the performance.
Our advanced thin film coating technology allows us to produce hard anti-reflective coating to resist from scratch, waterproof and perform well in harsh enviroment.
Despite of the following most commonly used anti-reflection coating, we also support special design like triple band anti-reflective coating of 589nm, 1064nm&1319nm.

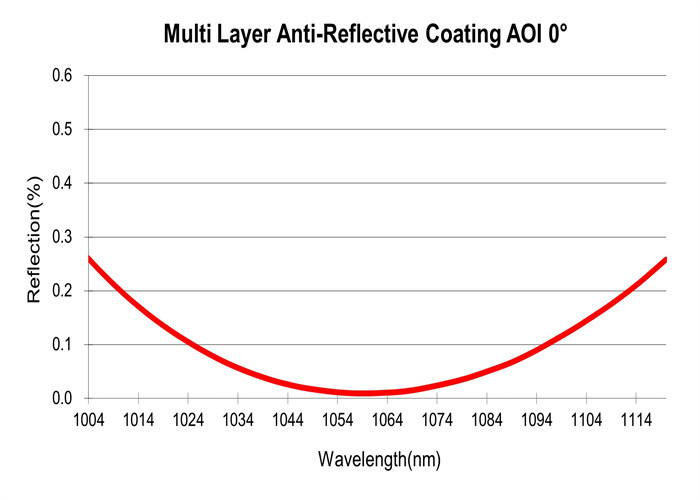

Anti-reflective Thin Film Optical Coating Graph:
|
||||||||||||||||||||||||
-
