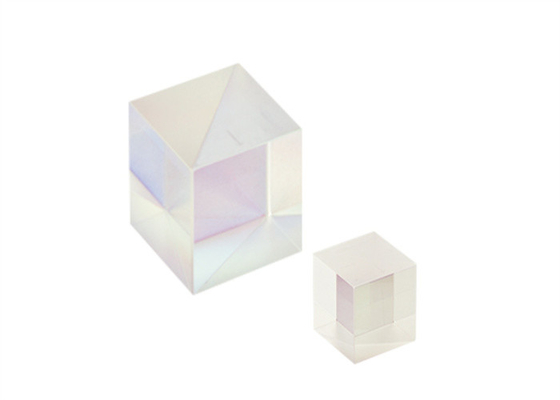

High Power Polarization Cube Beamsplitter

Overview:

The High Power Polarizing Cube beamsplitters are constructed by optically contacting, rather than cementing, UV fused silica Right Angle Prims which increases the laser damage threshold.



The polarizing beamsplitting coating is only applied to the hypotenuse of one of the two prisms before optical contacting. The other four faces are applied with antireflection coating that minimizes reflectance over the specified wavelengths.



Star Optic offers high polarization extinction ratio of Tp/Ts>1000:1 for transmitted beam.







General Specification of High Power Polarization Cube Beamsplitter:

Material UV Fused Silica
Dimension Tolerance ±0.2mm
Surface Quality 40/20 scratch and dig
Clear Aperture >90%
Flatness <λ/8@632.8nm
Beam Deviation <3 arc minutes
Extinction Ratio Tp/Ts>1000:1
Principal Transmittance Tp>95%, Ts<0.1%
Principal Reflectance Rs>99.9% , Rp<5%
Coating Polarization beamsplitter coating on hypotenuse face
AR coating on all input and output faces
Damage Threshold >5J/cm2, 20ns, 20Hz, @1064nm



High Power Polarizing Beam Splitter Cube 0



Standard Products Of High Power Polarization Cube Beamsplitter:

Part Number Material

Dimension

(mm)

Thickness

(mm)

 Tp/Ts

Wavelength

(nm)
PBSO1212-266 UVFS 12.7*12.7 12.7 >1000:1 266
PBSO2020-266 UVFS 20*20 20 >1000:1 266
PBSO1212-355 UVFS 12.7*12.7 12.7 >1000:1 355
PBSO2020-355 UVFS 20*20 20 >1000:1 355
PBSO1212-532 UVFS 12.7*12.7 12.7 >1000:1 532
PBSO2020-532 UVFS 20*20 20 >1000:1 532
PBSO1212-1064 UVFS 12.7*12.7 12.7 >1000:1 1064
PBSO2020-1064 UVFS 20*20 20 >1000:1 1064







Coating Graphs of High Power Polarization Cube Beamsplitter:



266nm High Power Polarization Beamsplitter Cube

High Power Polarizing Beam Splitter Cube 1



355nm High Power Polarization Beamsplitter Cube

High Power Polarizing Beam Splitter Cube 2



532nm High Power Polarization Beamsplitter Cube

High Power Polarizing Beam Splitter Cube 3



1064nm High Power Polarization Beamsplitter Cube

High Power Polarizing Beam Splitter Cube 4







Mount Options of High Power Polarization Cube Beamsplitter:

Star Optic also offers a variety of mounting solutions for our high power polarizing cube beamsplitters. Please refer to Optomechanical Mounts for information on mounting options and compatibility. If you are not sure which to select, please contact us, we will work with you to identify the best solution for your needs.
