20mm Optical Glass Filters 532nm Interference Bandpass Filter
Basic Properties
Place of Origin:
Wuhan, China
Brand Name:
STAR OPTIC
Certification:
RoHS, ISO9001
Model Number:
ITF
Trading Properties
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Payment Terms:
T/T, Western Union, Paypal
Supply Ability:
50000pcs/Month
Product Summary
Interference Bandpass Filter Overview: Interference Bandpass Filters provide one of the simplest ways to transmit a well-defined wavelength band of light, while rejecting other unwanted radiation. They are ideal for life science instrumentation and also are used in imaging or machine vision ...
Product Details
Highlight:
20mm Interference Bandpass Filter
,Interference Bandpass Filter 532nm
,Optical Glass Filters 532nm
Product Name:
Interference Bandpass Filter
Applications:
Life Science Instrumentation, Imaging Or Machine Vision
Feature:
Transmit Wanted Wavelength And Rejected Unwanted Wavelength With Sharp Cut
Size:
φ25.4x6mm
Central Wavelength:
532nm, 633nm, 1064nm And Custom
Housing:
Black Anodized Aluminum Ring
Product Description

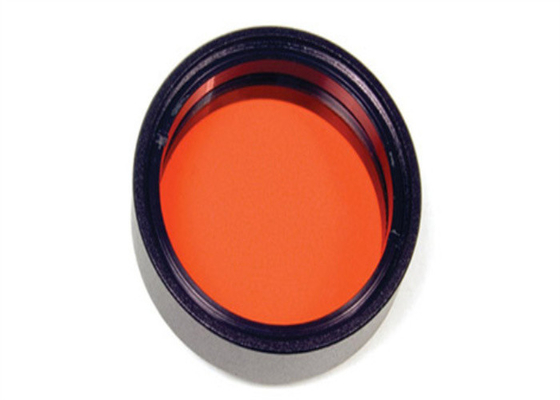

Interference Bandpass Filter
|
Overview: Interference Bandpass Filters provide one of the simplest ways to transmit a well-defined wavelength band of light, while rejecting other unwanted radiation. They are ideal for life science instrumentation and also are used in imaging or machine vision applications.
Each filter is housed in a black anodized aluminum ring which makes handling easier and enhances the blocking OD by limiting scattering.
General Specifications Of Interference Bandpass Filter:
Standard Products Of Interference Bandpass Filter:
Spectrum Graphs Of Interference Bandpass Filter:
|
