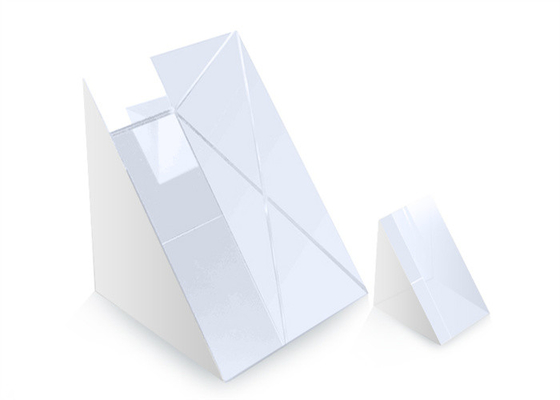

N-BK7 Right Angle Prism

  • N-BK7 Right Angle Prism
Place of Origin Wuhan, China
Brand Name STAR OPTIC
Certification RoHS, ISO9001
Model Number RAP
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Safe and dust-free packing
Delivery Time Negotiable
Payment Terms T/T, Western Union, Paypal
Supply Ability 50000pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Right Angle Prism Usage Deviate A Light Path By 90° Or 180°
Dimension 2x2mm~50.8x50.8mm And Custom Available Angle Tolerance <30 Arc Sec
Flatness λ/4@632.8nm Surface Quality 60/40scratch And Dig
High Light

N-BK7 Right Angle Prism Mirror

,

Right Angle Prism UV Fused Silica

,

Right Angle Prism N-BK7
Leave a Message
Product Description

Right Angle Prism, N-BK7 Right Angle Prism, UV Fused Silica Uncoated Right Angle Prism

Overview:

Right-Angle Prisms can be used to deviate a light path by 90° or 180°, depending on which surface is used as the input for the light source.



Due to total internal reflection (TIR), when the input light is incident on one of the prism's legs, it undergoes TIR at the glass/air boundary of the hypotenuse and exits via the other prism leg. This shows how the right-angle prism can be used as a 90° reflector.



When the input light is incident on the face of the hypotenuse, it undergoes TIR at the glass/air boundary at the prism legs. It undergoes TIR a second time at the next prism leg and exits the hypotenuse in a path parallel to that of the input beam. This shows how the right-angle prism can be used as a 180° retroreflector.

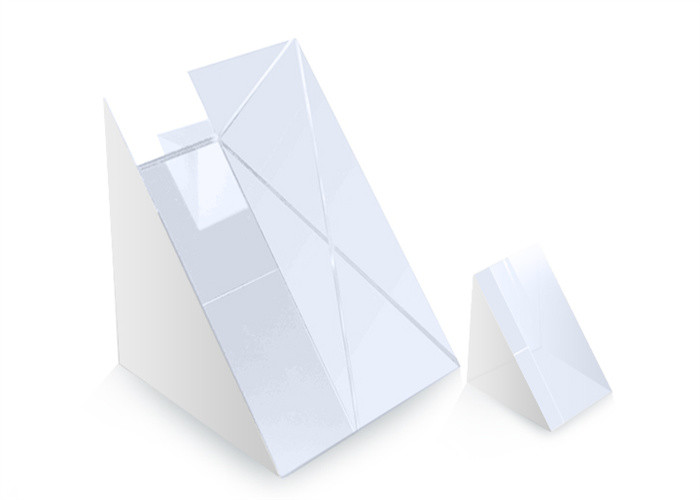

N-BK7 Right Angle Prism 0







General Specifications of Right Angle Prism:

Material BK7, UV grade Fused Silica N-BK7 Right Angle Prism 1
Dimension Tolerance ±0.2mm
Angle Tolerance Refer to below list
Flatness λ/4@632.8nm per 25mm
Pyramidal Error <3arc minutes
Perpendicularity <15arc minutes
Surface Quality 60/40scratch and dig
Clear Aperture >90%
Chamfer Protective
Coating Uncoated, Upon request









Standard Products of Right Angle Prism:

Part Number. Material A=B(mm) C (mm) Angle tolerance
RAP0202-3m N-BK7 2*2 2 <3 arc min
RAP0303-3m N-BK7 3*3 3 <3 arc min
RAP0505-3m N-BK7 5*5 5 <3 arc min
RAP1010-3m N-BK7 10*10 10 <3 arc min
RAP1212-3m N-BK7 12.7*12.7 12.7 <3 arc min
RAP1515-3m N-BK7 15*15 15 <3 arc min
RAP2020-3m N-BK7 20*20 20 <3 arc min
RAP2525-3m N-BK7 25.4*25.4 25.4 <3 arc min
RAP3030-3m N-BK7 30*30 30 <3 arc min
RAP3838-3m N-BK7 38.1*38.1 38.1 <3 arc min
RAP5050-3m N-BK7 50.8*50.8 50.8 <3 arc min
RAP0202-30s N-BK7 2*2 2 <30 arc sec
RAP0303-30s N-BK7 3*3 3 <30 arc sec
RAP0505-30s N-BK7 5*5 5 <30 arc sec
RAP1010-30s N-BK7 10*10 10 <30 arc sec
RAP1212-30s N-BK7 12.7*12.7 12.7 <30 arc sec
RAP1515-30s N-BK7 15*15 15 <30 arc sec
RAP2020-30s N-BK7 20*20 20 <30 arc sec
RAP2525-30s N-BK7 25.4*25.4 25.4 <30 arc sec
RAP3030-30s N-BK7 30*30 30 <30 arc sec
RAP3838-30s N-BK7 38.1*38.1 38.1 <30 arc sec
RAP5050-30s N-BK7 50.8*50.8 50.8 <30 arc sec
RAP0202-3m-FS UVFS 2*2 2 <3 arc min
RAP0303-3m-FS UVFS 3*3 3 <3 arc min
RAP0505-3m-FS UVFS 5*5 5 <3 arc min
RAP1010-3m-FS UVFS 10*10 10 <3 arc min
RAP1212-3m-FS UVFS 12.7*12.7 12.7 <3 arc min
RAP1515-3m-FS UVFS 15*15 15 <3 arc min
RAP2020-3m-FS UVFS 20*20 20 <3 arc min
RAP2525-3m-FS UVFS 25.4*25.4 25.4 <3 arc min
RAP3030-3m-FS UVFS 30*30 30 <3 arc min
RAP3838-3m-FS UVFS 38.1*38.1 38.1 <3 arc min
RAP5050-3m-FS UVFS 50.8*50.8 50.8 <3 arc min
RAP0202-30s-FS UVFS 2*2 2 <30 arc sec
RAP0303-30s-FS UVFS 3*3 3 <30 arc sec
RAP0505-30s-FS UVFS 5*5 5 <30 arc sec
RAP1010-30s-FS UVFS 10*10 10 <30 arc sec
RAP1212-30s-FS UVFS 12.7*12.7 12.7 <30 arc sec
RAP1515-30s-FS UVFS 15*15 15 <30 arc sec
RAP2020-30s-FS UVFS 20*20 20 <30 arc sec
RAP2525-30s-FS UVFS 25.4*25.4 25.4 <30 arc sec
RAP3030-30s-FS UVFS 30*30 30 <30 arc sec
RAP3838-30s-FS UVFS 38.1*38.1 38.1 <30 arc sec
RAP5050-30s-FS UVFS 50.8*50.8 50.8 <30 arc sec
