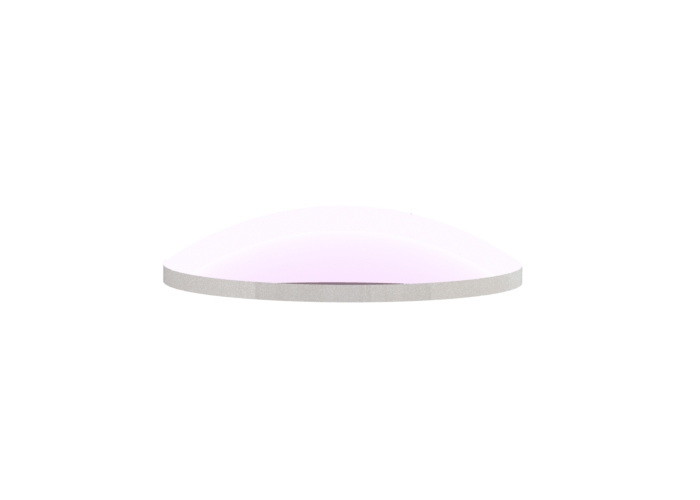

N-BK7 Convex Spherical Lens

Overview:

Plano-Convex (PCX) Lenses have a positive focal length, can focus a collimated beam or collimate light from a point source, making them ideal for collecting and focusing light in imaging applications. Star Optic provides Plano-Convex Lenses fabricated from RoHS-compliant N-BK7, UV fused silica, N-SF11, CaF2, Si, Ge, ZnSe and Sapphire. Our Plano-Convex Lenses are also used in applications involving emitters, detectors, lasers, and fiber optics.

General Specifications Of N-BK7 Plano Convex (PCX) Spherical Lens:

Material	N-BK7
Design Wavelength	546.1nm
Surface Flatness	N<3(0.5)@632.8nm
Surface Quality	60/40 scratch-Dig
Diameter Tolerance	+0/-0.2mm
Thickness Tolerance	±0.2mm
Centration	<3 arc minutes
Focal Length Tolerance	±2%
Clear Aperture	>90%
Chamfer	Protective<0.5mmx45°

Standard Products Of N-BK7 Plano Convex (PCX) Spherical Lens:

Coating Options Of N-BK7 Plano Convex (PCX) Spherical Lens:

Star Optic's above standard plano convex lenses are uncoated. In order to reduce the amount of light reflected from each surface of the lens, antireflection coatings including singer layer MgF2, multi-layer AR coating, Broadband multi-layer AR coating and Dual wavelength AR coating are also available.

Single Layer MgF2 Coating	Multi-layer Anti-Reflective Coating
Boradband Anti-Reflective Coating	Dual Wavelength Anti-Reflective Coating

Mounting Options For Plano Convex (PCX) Spherical Lens:

Star Optic's above standard plano convex lenses are not mounted. However, we can provide fixed mount and adjustable mount for our lenses.

Custom Your Own Lens:

You have your full design freedom, and we are able to work with complex designs to get you exactly what you need including optical design, mechanical design and optical coating design.
